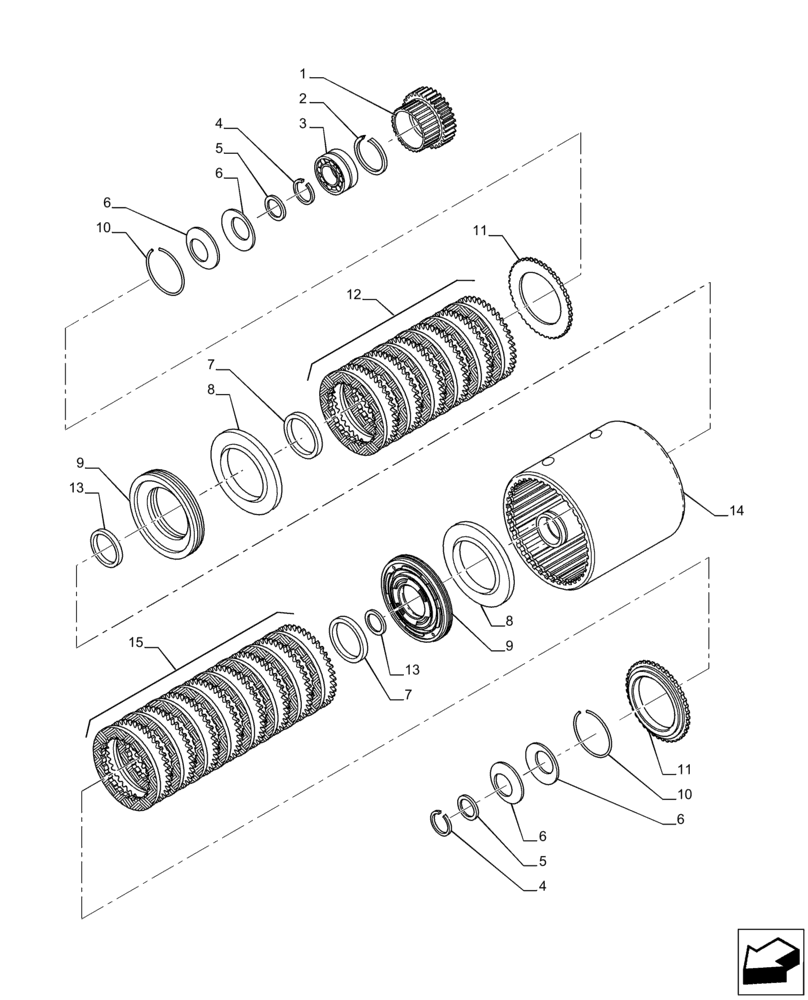

Запчасти Case IH PUMA 150 (21.152.AA[06]) - VAR - 391136, 758011, 758866, 758867 - TRANSMISSION, CLUTCH (21) - TRANSMISSION

1

5167830

DRIVEN GEAR,45T, 52T

3/4 Speed

1шт.

2

5162623

CIRCLIP,80mm ID

1шт.

3

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

1шт.

4

5175981

CIRCLIP,1.5mm Thk

2шт.

5

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

2шт.

6

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

14шт.

7

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

2шт.

8

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

2шт.

9

87547824

PISTON

2шт.

10

47132782

SNAP RING,3mm Thk, Int

2шт.

11

47132780

THRUST PLATE,60T, 154.75mm OD

2шт.

12

87530788

CLUTCH PACK

Clutch Plates

1шт.

13

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

2шт.

14

47132827

CLUTCH HOUSING

1/2 - 3/4 Speed

1шт.

15

87530789

CLUTCH PACK

Clutch Plates

1шт.
