Запчасти Case IH PUMA 150 (21.152.AA[05]) - VAR - 391136, 758011, 758866, 758867 - TRANSMISSION, DRIVE SHAFT, CLUTCH (21) - TRANSMISSION

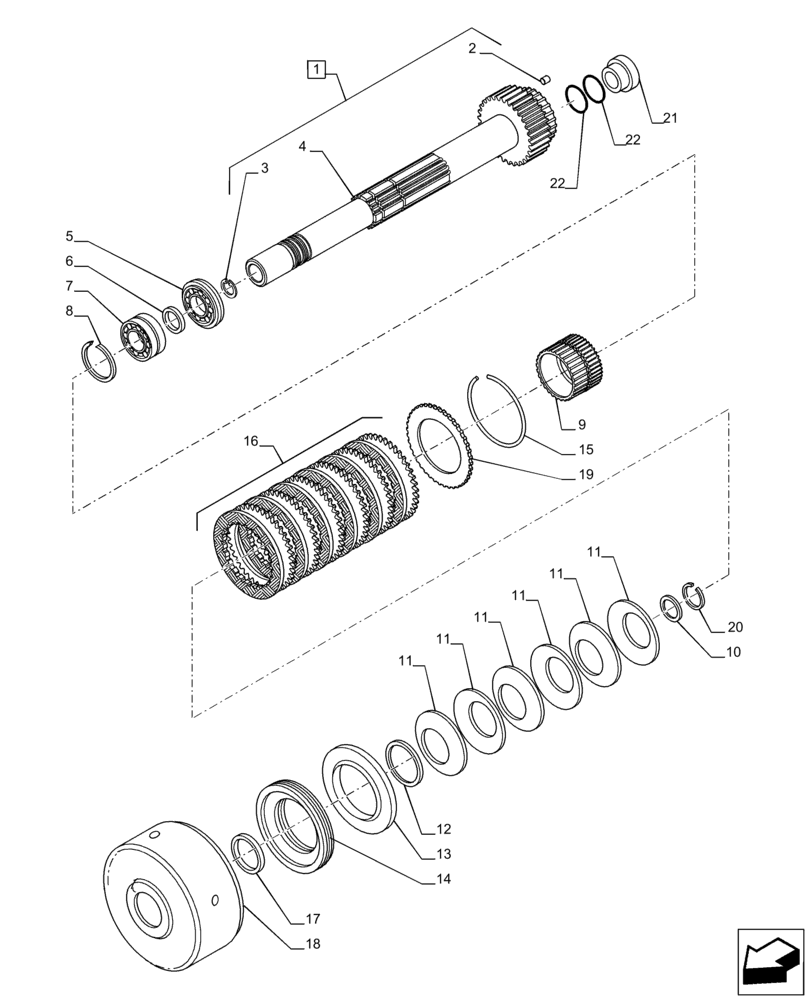

Схема запчастей Case IH PUMA 150 - (21.152.AA[05]) - VAR - 391136, 758011, 758866, 758867 - TRANSMISSION, DRIVE SHAFT, CLUTCH (21) - TRANSMISSION
1
8
21
4
11
2
19
22
9
11
11
12
5
11
14
10
20
16
7
13
3
17
11
15
22
11
6
18

Артикул

Название

Примечание

Количество

1

5180808

MAIN SHAFT

ASSY, Incl 2 - 4

1шт.

2

5162260

PLUG,Round, 10.5mm OD

3шт.

3

11059076

SNAP RING,M32, Int

1шт.

4

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

5

5138418

TAPERED BEARING,50mm ID x 110mm OD x 29.25mm W

1шт.

6

5162261

SPACER,50.1mm ID x 60mm OD x 4mm L

1шт.

7

5162622

BALL BEARING,50mm ID x 80mm OD x 32mm W

1шт.

8

5162623

CIRCLIP,80mm ID

1шт.

9

47126212

GEAR,39T, 52T

5/6 Speed

1шт.

10

5164928

RETAINER CUP,60mm ID x 70mm OD x 3mm Thk

1шт.

11

87547947

SPRING,Belleville, 60mm ID x 1.9mm Thk

6шт.

12

87547826

RING,61mm ID x 84.95mm OD x 3mm Thk

1шт.

13

5138955

GASKET,134.55mm ID x 142.06mm OD x 3.2mm Thk

1шт.

14

87547824

PISTON

1шт.

15

47132782

SNAP RING,3mm Thk, Int

1шт.

16

87530788

CLUTCH PACK

1шт.

17

5162252

GASKET,68mm ID x 75.5mm OD x 3.2mm Thk

1шт.

18

47132786

CLUTCH HOUSING

5/6 Speed

1шт.

19

47132780

THRUST PLATE,60T, 154.75mm OD

1шт.

20

5175981

CIRCLIP,1.5mm Thk

1шт.

21

5166039

SLEEVE,13.75mm ID x 25mm OD x 18mm L

1шт.

22

129979

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

Выбрано товаров: 22
