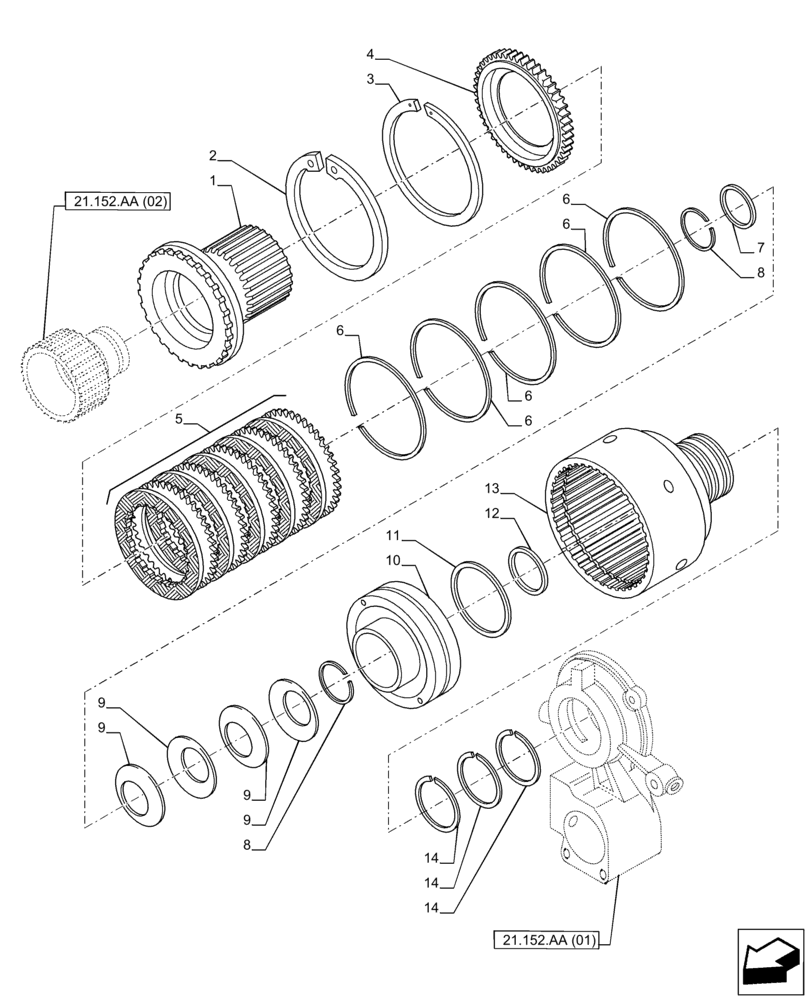

Запчасти Case IH PUMA 150 (21.152.AA[03]) - VAR - 391136, 758011, 758866, 758867 - TRANSMISSION, CLUTCH (21) - TRANSMISSION

1

5162333

HUB

1шт.

2

11078676

SNAP RING,M175, Int

1шт.

3

5122844

SNAP RING,168mm, 2mm Thk, Int

D=168

1шт.

4

5122821

THRUST PLATE,53T, 173mm OD

1шт.

5

87530796

CLUTCH PACK

1шт.

6

5166536

SPRING,173mm OD x 1.27mm Thk

7шт.

7

5162263

RETAINER CUP,68mm ID x 78mm OD x 3mm Thk

1шт.

8

5162253

CIRCLIP,2mm Thk

2шт.

9

87547943

SPRING,Belleville, 68mm ID x 1.9mm Thk

9шт.

10

5171202

PISTON

1шт.

11

5143775

SEAL,128.55mm ID x 136.06mm OD x 3.2mm Thk

1шт.

12

5162398

SEALING RING,82.55mm ID x 90mm OD x 3.2mm Thk

1шт.

13

5171195

HOUSING

1шт.

14

5131232

OIL SCRAPER RING,Split, 83.02mm ID x 90mm OD x 2.22mm Thk

3шт.
