(21.148.AC[04]) - VAR - 391139, 338397, 758024, 758031, 758868, 758869 - TRANSMISSION, REAR, GEARS & SHAFT, BEVEL PINION, POWERSHIFT

Запчасти Case IH PUMA 150 (21.148.AC[04]) - VAR - 391139, 338397, 758024, 758031, 758868, 758869 - TRANSMISSION, REAR, GEARS & SHAFT, BEVEL PINION, POWERSHIFT (21) - TRANSMISSION

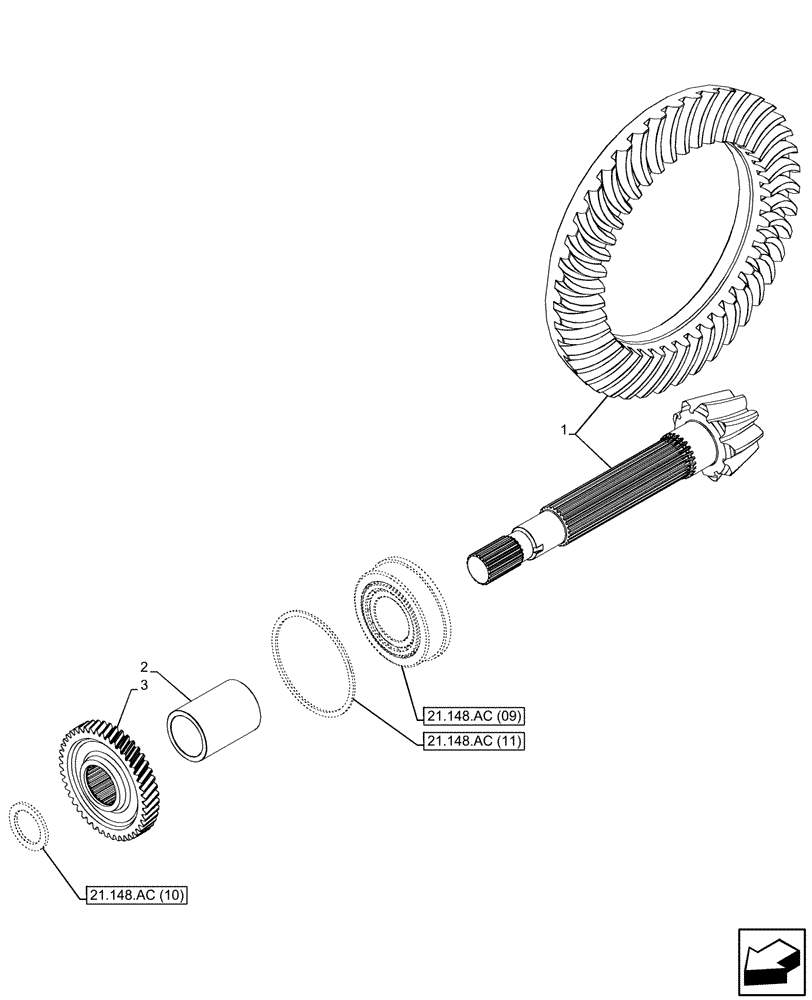

Схема запчастей Case IH PUMA 150 - (21.148.AC[04]) - VAR - 391139, 338397, 758024, 758031, 758868, 758869 - TRANSMISSION, REAR, GEARS & SHAFT, BEVEL PINION, POWERSHIFT (21) - TRANSMISSION
21.148.ac (10)
2
1
3
21.148.ac (11)
21.148.ac (09)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87559710

BEVEL GEAR,11/43 Ratio

Ratio 11/43

1шт.

2

5185558

SPACER,55mm ID x 74mm OD x 79mm L

55mm ID x 74mm OD x 79mm

1шт.

3

5171890

GEAR,Z48

Z 48

1шт.
