(21.133.AK[01]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015 - TRANSMISSION CONTROL VALVE

Запчасти Case IH PUMA 150 (21.133.AK[01]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015 - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION

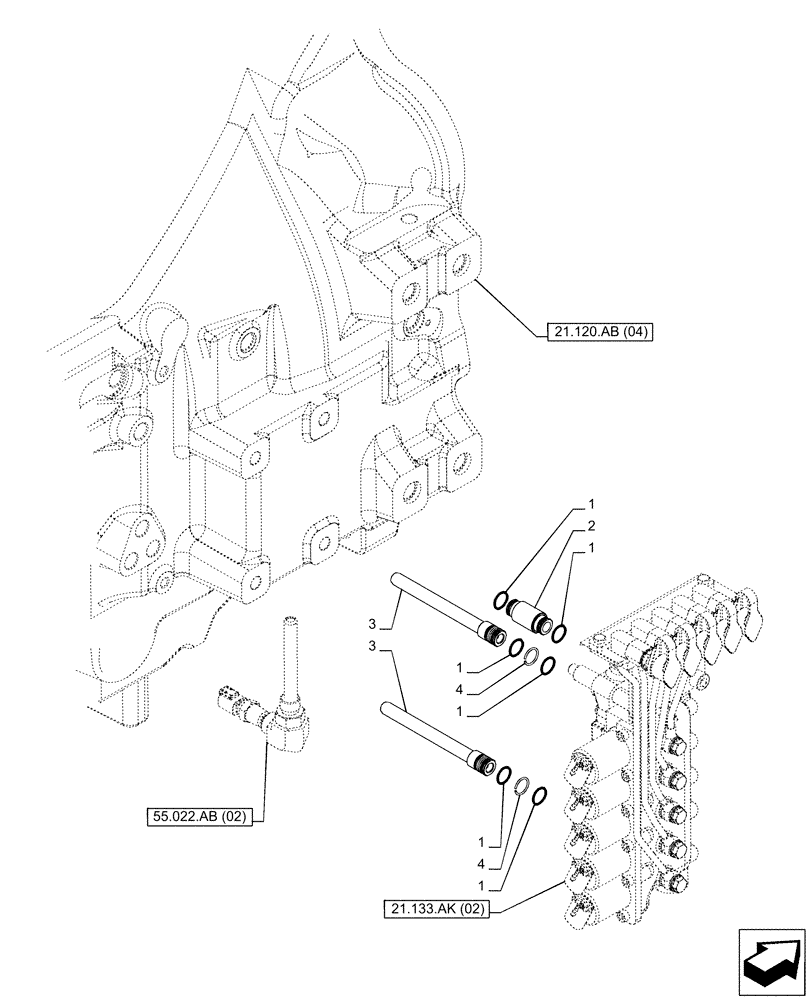

Схема запчастей Case IH PUMA 150 - (21.133.AK[01]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015 - TRANSMISSION CONTROL VALVE (21) - TRANSMISSION
21.120.ab (04)
3
1
2
1
1
1
4
1
1
3
4
55.022.ab (02)
21.133.ak (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

14453180

O-RING,12.42mm ID x 1.78mm

10шт.

2

5167065

HYD CONNECTOR,10mm ID, 44.5mm L

1шт.

3

5162184

HYD CONNECTOR,M10 x 1.25, 136mm L

4шт.

4

13397770

SNAP RING,M16, Int

4шт.
