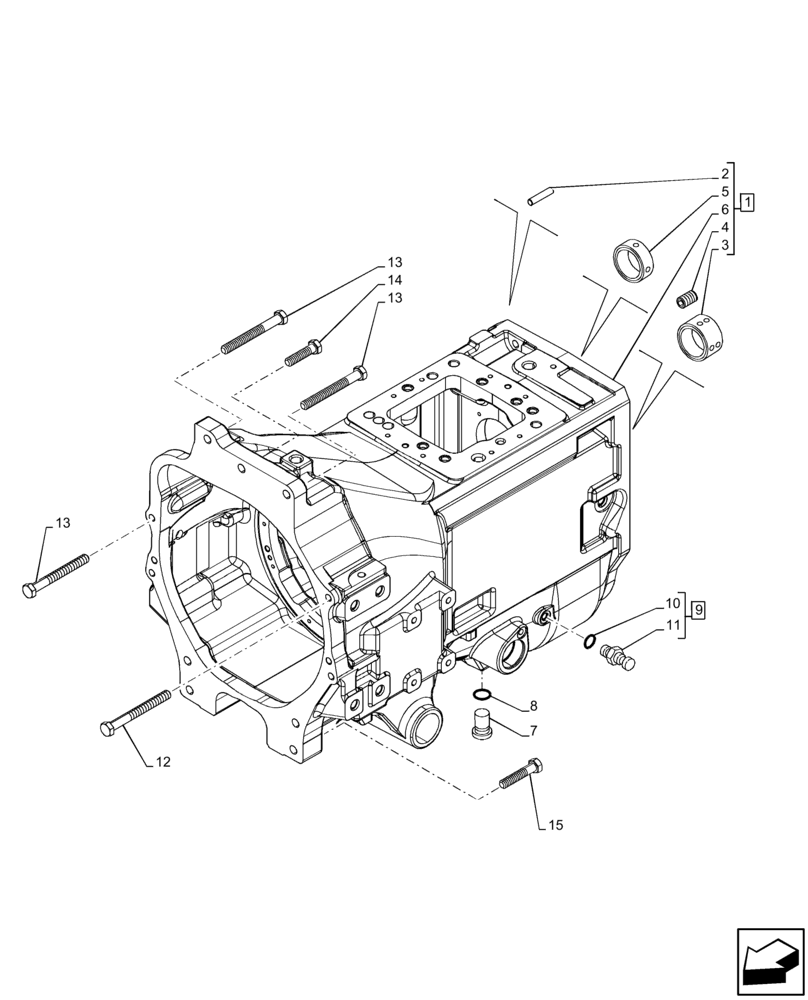

Запчасти Case IH PUMA 150 (21.120.AB[01]) - VAR - 391136, 391351, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - GEARBOX, POWERSHIFT (21) - TRANSMISSION

1

84252680

HOUSING

ASSY, Incl 2 - 6

1шт.

2

5153109

DOWEL,10mm OD x 15mm L

2шт.

3

5189017

BUSHING,90.02mm ID x 100.06mm OD x 52.5mm L

1шт.

4

10275501

PLUG,Pipe, Hex Skt, M12 x 1.25 x 11mm, Cl 4.8

2шт.

5

5189016

BUSHING,90.02mm ID x 100.06mm OD x 28mm L

1шт.

6

NSS

NOT SOLD SEPARAT

Housing, Incl in 1

1шт.

7

10119511

PLUG,M33 x 2 x 16, Cl5.8

1шт.

8

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

9

5185423

COUPLING

ASSY, Incl 10, 11

4шт.

10

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

NSS

NOT SOLD SEPARAT

Coupling, Incl in 9

1шт.

12

15982334

BOLT,Hex, M16 x 1.5 x 150mm, Cl 10.9

2шт.

13

15982134

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

4шт.

14

15981234

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

1шт.

15

11254134

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

4шт.
