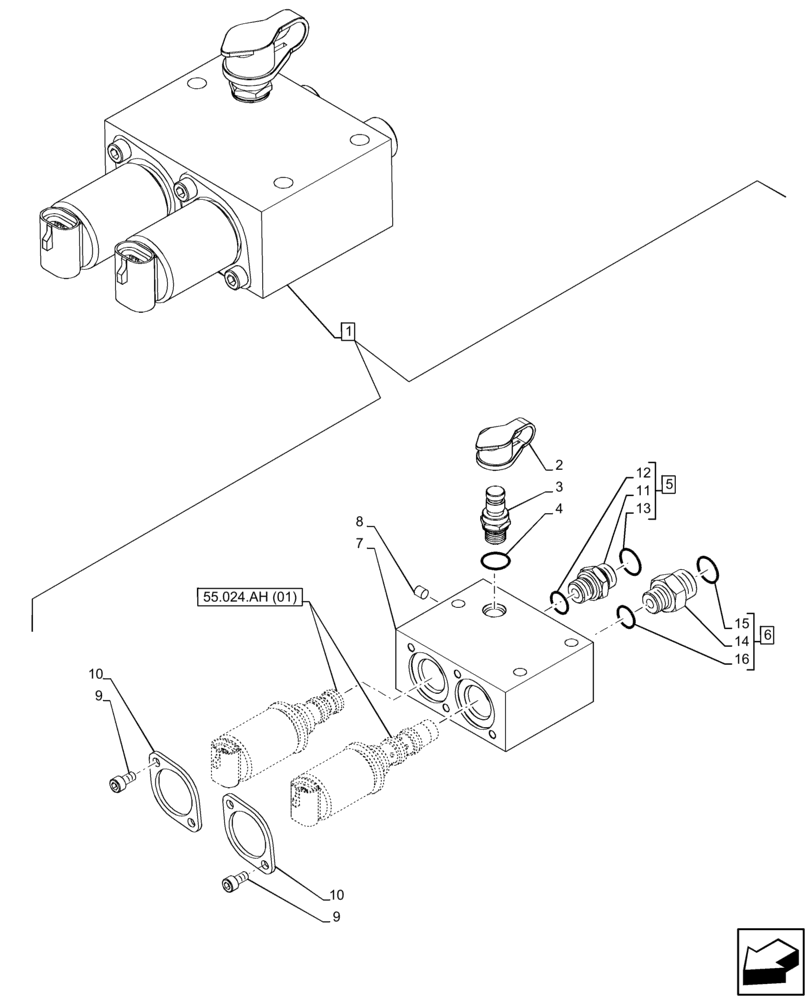

Запчасти Case IH PUMA 150 (21.105.AI[02]) - VAR - 391351, 758011, 758012, 758013, 758014, 758015, 758018, 758019, 758020, 758021 - VALVE, LUBRIFICATION (21) - TRANSMISSION

1

87315602

HYDRAULIC VALVE

ASSY, Incl 2 - 16

1шт.

See also Components in Figure 55.024.AH 01

1шт.

2

5185424

DUST CAP,11.5mm ID x 81.5 L, Black

1шт.

3

5185423

COUPLING

1шт.

4

47725668

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

5

5192374

HYD CONNECTOR,11/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 11 - 13

1шт.

6

82019684

HYD CONNECTOR,13/16-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 14 - 16

1шт.

7

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

8

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

2шт.

9

14305121

HEX SOC SCREW,M6 x 12mm, Cl 8.8

4шт.

10

5194826

BRACKET

2шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

1шт.

12

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

13

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

15

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

16

82019812

SEAL,13.8mm ID x 8.9mm OD x 1.5mm Thk

1шт.
