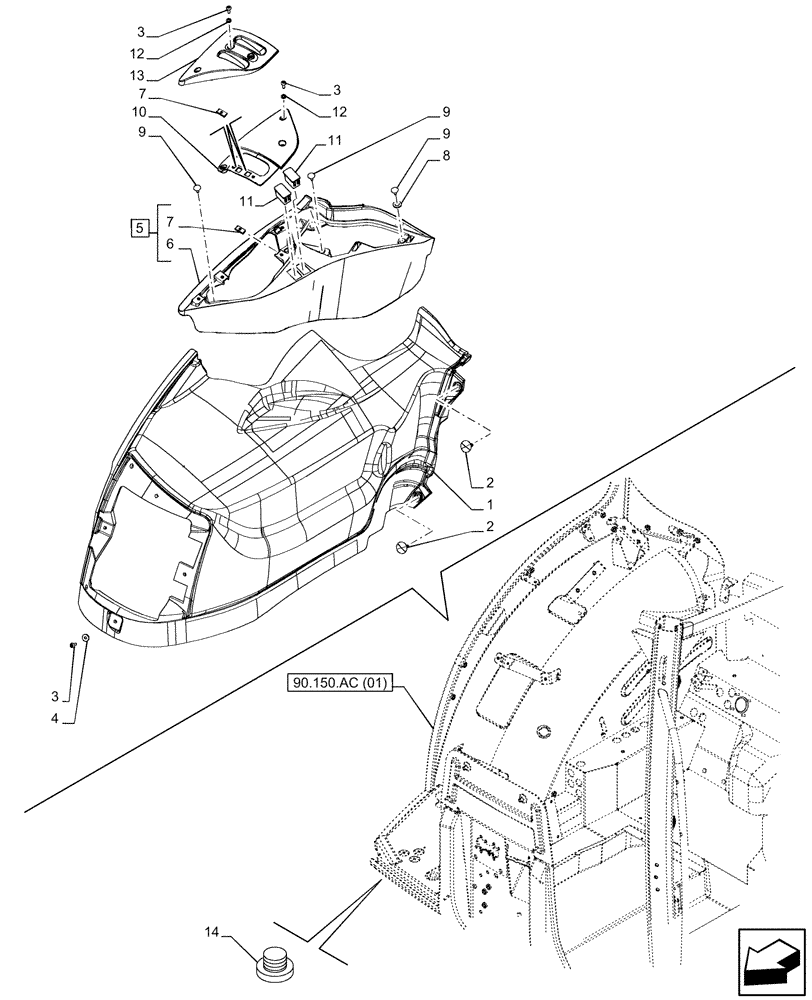

Запчасти Case IH PUMA 150 (90.160.BL[04]) - VAR - 391163 - CAB INTERIOR TRIM, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84242733

PANEL

RH

1шт.

2

82023482

ANCHOR,Button Hd, 8.25mm x 35.00mm

2шт.

3

84187815

SCREW,Pan Hd, M5.5 x 1.8 x 19mm

5.5 x 19

10шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

5

47767713

COVER

ASSY, RH CASE, Incl 6, 7 (Qty 4)

1шт.

6

NSS

NOT SOLD SEPARAT

Cover, RH CASE, Incl in 5

1шт.

7

87567755

SPRING NUT,M5

M5

6шт.

8

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

9

10558728

SCREW,Flat Hd W/Collar, M6 x 22mm, Cl 8.8

5шт.

10

84190835

BEZEL

less Mechanical Remotes 3 and 4

1шт.

11

82022763

PLUG

2шт.

12

14496407

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

6шт.

13

84190826

BEZEL

Mechanical Remotes 1 and 2

1шт.

14

81862738

PLUG,M38 x 28 x 5mm

4шт.
