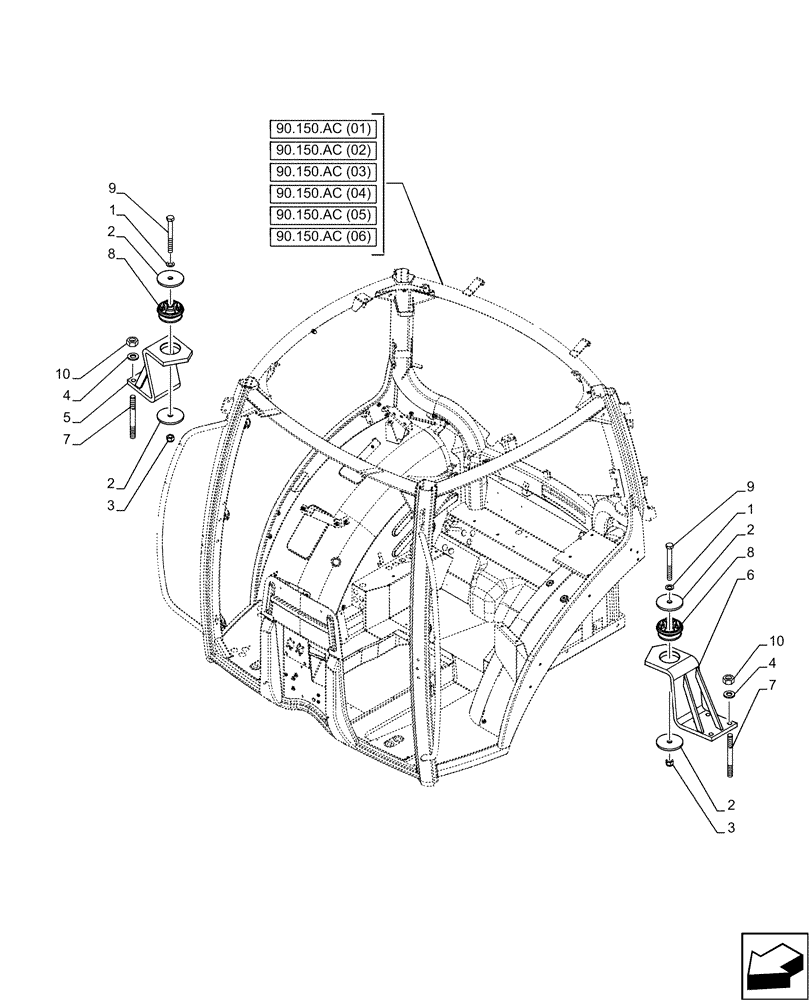

Запчасти Case IH PUMA 150 (90.150.AG[02]) - VAR - 391155, 391183, 758037, 758038, 758039, 758040, 758041, 758042, 758043, 758044 - CAB, REAR, MOUNT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86511327

WASHER,21mm ID x 37mm OD x 3mm Thk

1шт.

2

87302042

SPACER,21mm ID x 120mm OD x 8.7mm L

4шт.

3

12575111

LOCK NUT,M20 x 1.5, Cl 8

2шт.

4

10520324

WASHER,18.4mm ID x 32mm OD x 4mm Thk

8шт.

5

82035573

SUPPORT

1шт.

6

82035571

SUPPORT

1шт.

7

11803824

STUD,M18 x 1.5 x 55mm L1 x 25mm L2, Cl 8.8

8шт.

8

83983548

ISOLATOR,120mm OD x 64mm L

2шт.

9

15990721

BOLT,Hex, M20 x 1.5 x 180mm, Cl 8.8

2шт.

10

12164224

NUT,M18 x 1.5, Cl 10

8шт.
