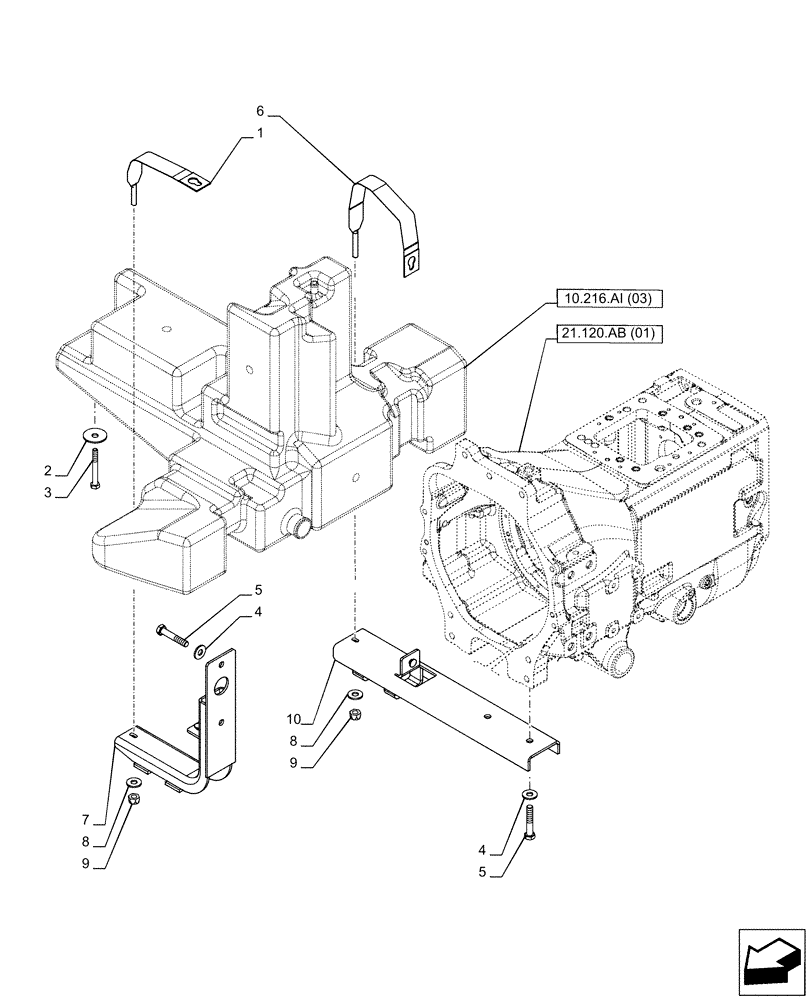

Запчасти Case IH PUMA 150 (10.216.AI[08]) - VAR - 391131, 758001 - FUEL TANK, SUPPORT (RH) (10) - ENGINE

1

84319310

STRAP,253mm L

1шт.

2

84596792

WASHER,11.0mm ID x 70mm OD x 4.5mm Thk

1шт.

3

120116

SCREW,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

4

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

5

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

6

84319731

STRAP,389mm L

1шт.

7

84331082

HOLDER

1шт.

8

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

9

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

10

84331167

SUPPORT

1шт.
