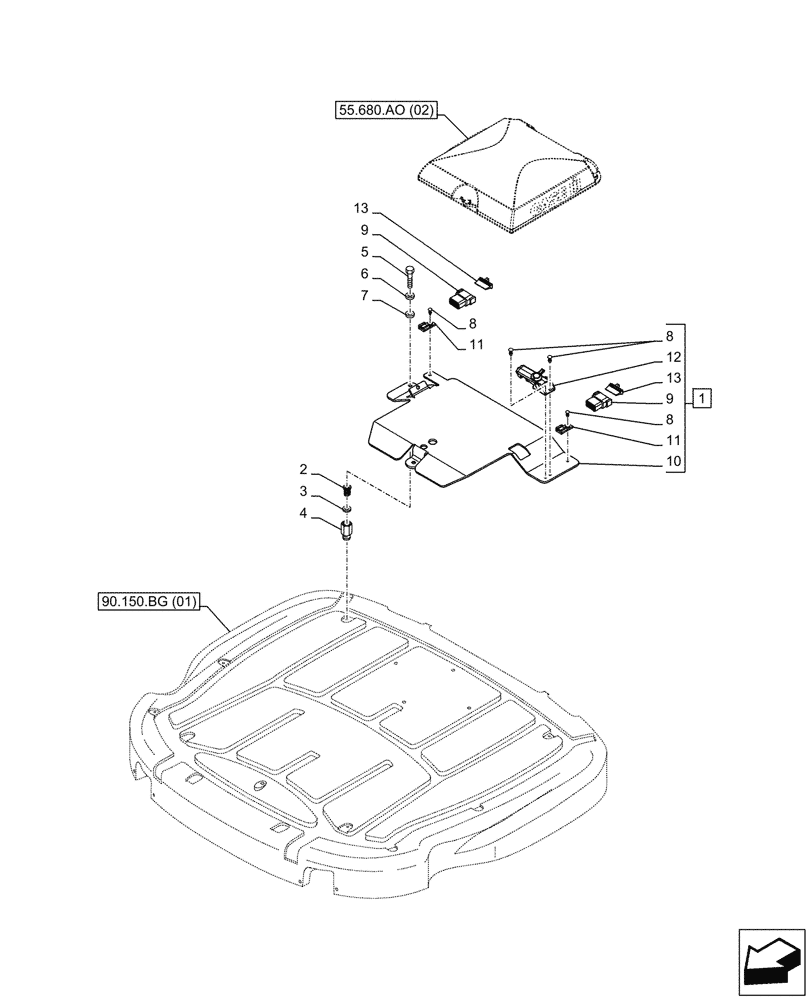

Запчасти Case IH PUMA 150 (55.680.AO[01A]) - VAR - 758272, 758273 - GPS RECEIVER, SUPPORT - BEGIN YR 19-MAR-2015 (55) - ELECTRICAL SYSTEMS

1

47693908

BRACKET

ASSY, Incl 8 - 13

1шт.

2

87652569

INSERT,M6 x 14 mm L

3шт.

3

81869856

WASHER,6mm ID x 17mm OD

Roof, 6 x 17

3шт.

4

82034114

SPACER,M6 x 25mm L

3шт.

5

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

3шт.

6

12647604

WASHER,6.15mm ID x 16mm OD x 2mm Thk

3шт.

7

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

3шт.

8

87308841

RIVET,Pop, 3.97mm OD x 10.79mm L

4шт.

9

87641584

MULTIPOLE CONNECTOR,12 Pole

2шт.

10

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

11

84058832

CLIP

2шт.

12

NSS

NOT SOLD SEPARAT

Latch, Incl in 1

1шт.

13

87648972

WEDGE,Lock, Orange

2шт.
