(55.512.CS[09]) - VAR - 335481 - ARMREST, ELECTRONIC CONTROLS

Запчасти Case IH PUMA 150 (55.512.CS[09]) - VAR - 335481 - ARMREST, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

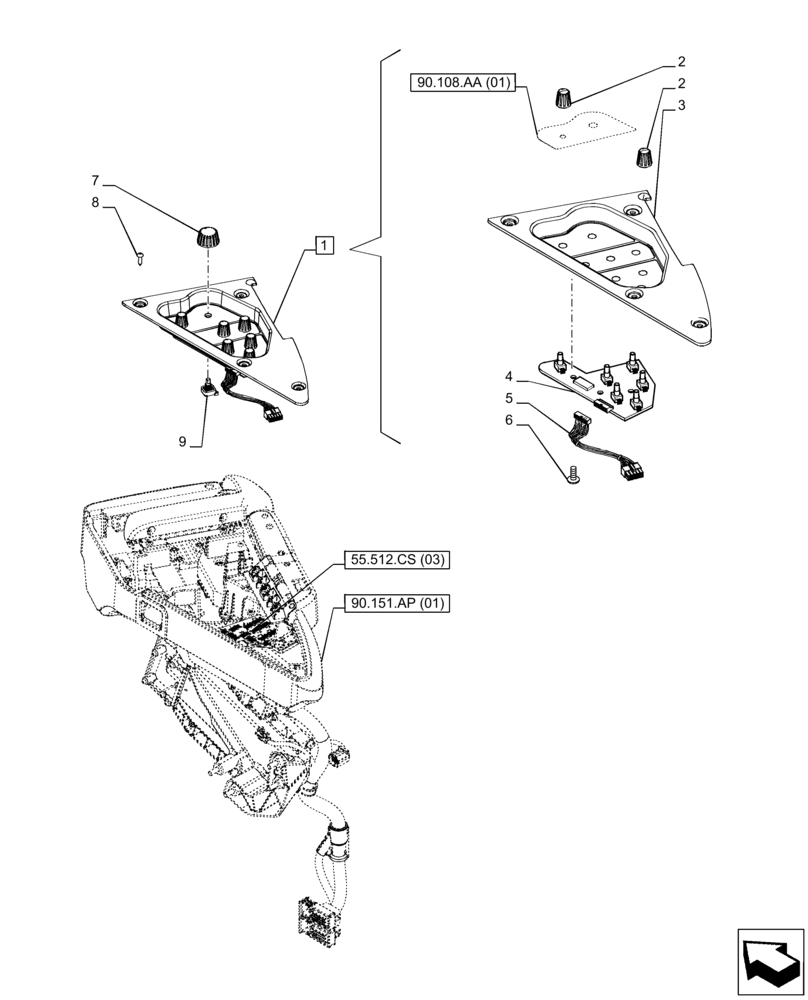

Схема запчастей Case IH PUMA 150 - (55.512.CS[09]) - VAR - 335481 - ARMREST, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS
2
55.512.cs (03)
90.151.ap (01)
5
8
90.108.aa (01)
6
4
7
1
3
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84394113

ELECTRIC PANEL

EDC, Front/Rear, with Slip, with EHR, ASSY, Incl 2 - 6

1шт.

2

87584684

KNOB

6шт.

3

87486096

PANEL

EDC Controls

1шт.

4

NSS

NOT SOLD SEPARAT

Printed Circuit, Incl in 1

1шт.

5

84395364

WIRE HARNESS

Armrest

1шт.

6

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

3шт.

7

87454709

KNOB

SWCD Encoder

1шт.

8

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8 x 19

4шт.

9

87755846

POTENTIOMETER,5V, 30mA, 150mW

EHR Flow Control

1шт.
