(55.512.CS[05]) - VAR - 335475 - ARMREST, ELECTRONIC CONTROLS

Запчасти Case IH PUMA 150 (55.512.CS[05]) - VAR - 335475 - ARMREST, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS

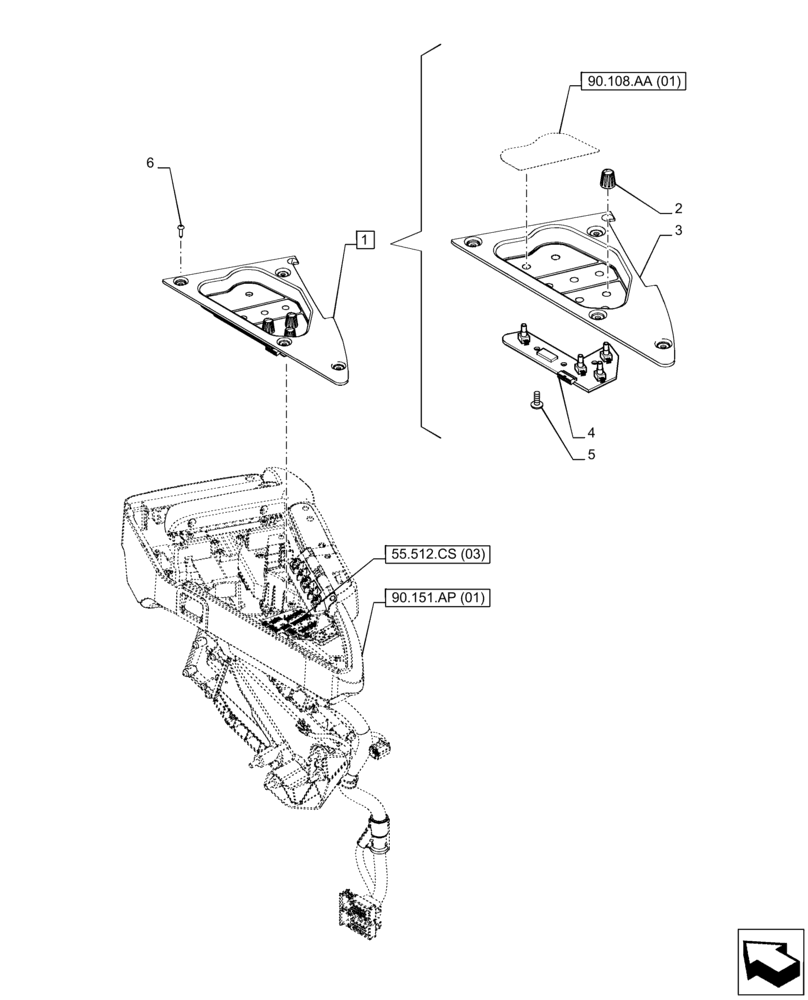

Схема запчастей Case IH PUMA 150 - (55.512.CS[05]) - VAR - 335475 - ARMREST, ELECTRONIC CONTROLS (55) - ELECTRICAL SYSTEMS
5
90.151.ap (01)
4
90.108.aa (01)
55.512.cs (03)
6
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84168657

ELECTRIC PANEL

EDC Rear, less Slip, less EHR, ASSY, Incl 2 - 5

1шт.

2

82012988

KNOB

Small

3шт.

3

87486096

PANEL

EDC Controls

1шт.

4

84206632

PRINTED CIRCUIT BOAR

Printed Circuit

1шт.

5

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

3шт.

6

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4.8 x 19

4шт.
