Запчасти Case IH PUMA 150 (55.512.CS[02]) - VAR - 758259, 758260, 758261, 758262, 758263, 758264, 758265 - ARMREST, ELECTRIC SYSTEM CONTROL, COVERS (55) - ELECTRICAL SYSTEMS

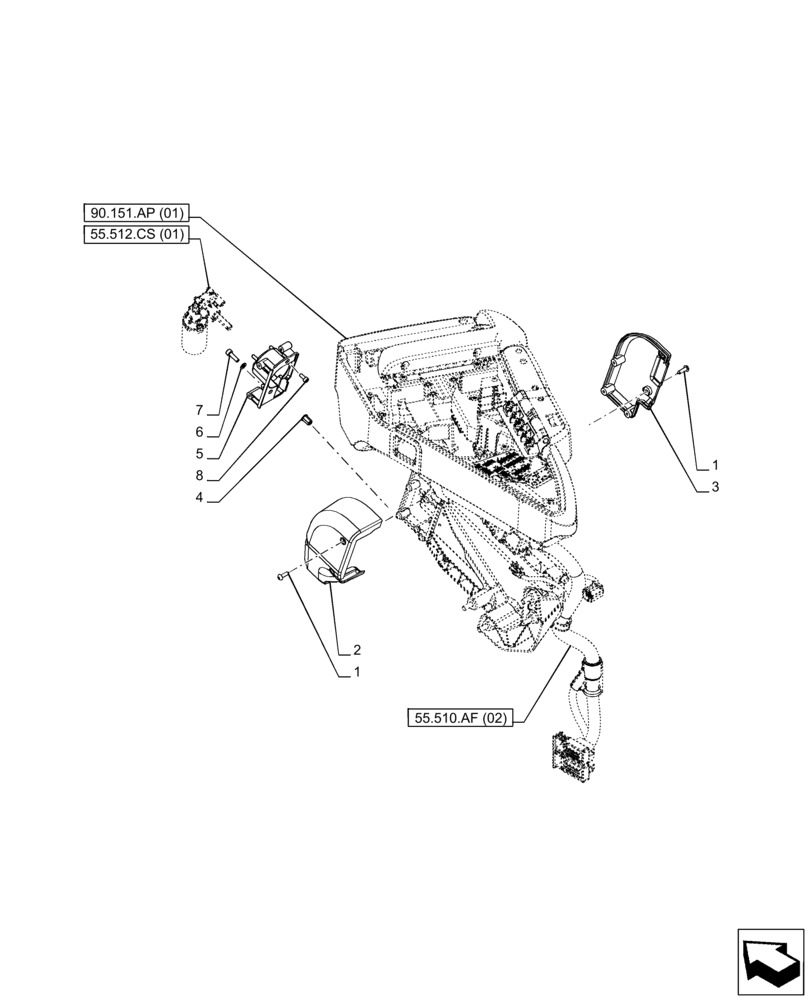

Схема запчастей Case IH PUMA 150 - (55.512.CS[02]) - VAR - 758259, 758260, 758261, 758262, 758263, 758264, 758265 - ARMREST, ELECTRIC SYSTEM CONTROL, COVERS (55) - ELECTRICAL SYSTEMS
4
1
8
55.510.af (02)
5
55.512.cs (01)
2
3
1
6
90.151.ap (01)
7

Артикул

Название

Примечание

Количество

1

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

7шт.

2

84201762

SHELL

Inside

1шт.

3

84201783

SHELL

Outside

1шт.

4

15624411

RIVET,Flat, M6 OD x 16mm L

2шт.

5

84201758

HOLDER

1шт.

6

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

2шт.

7

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

2шт.

8

86625213

HEX SOC SCREW,M5 x 12mm, Cl 8.8

3шт.

Выбрано товаров: 8
