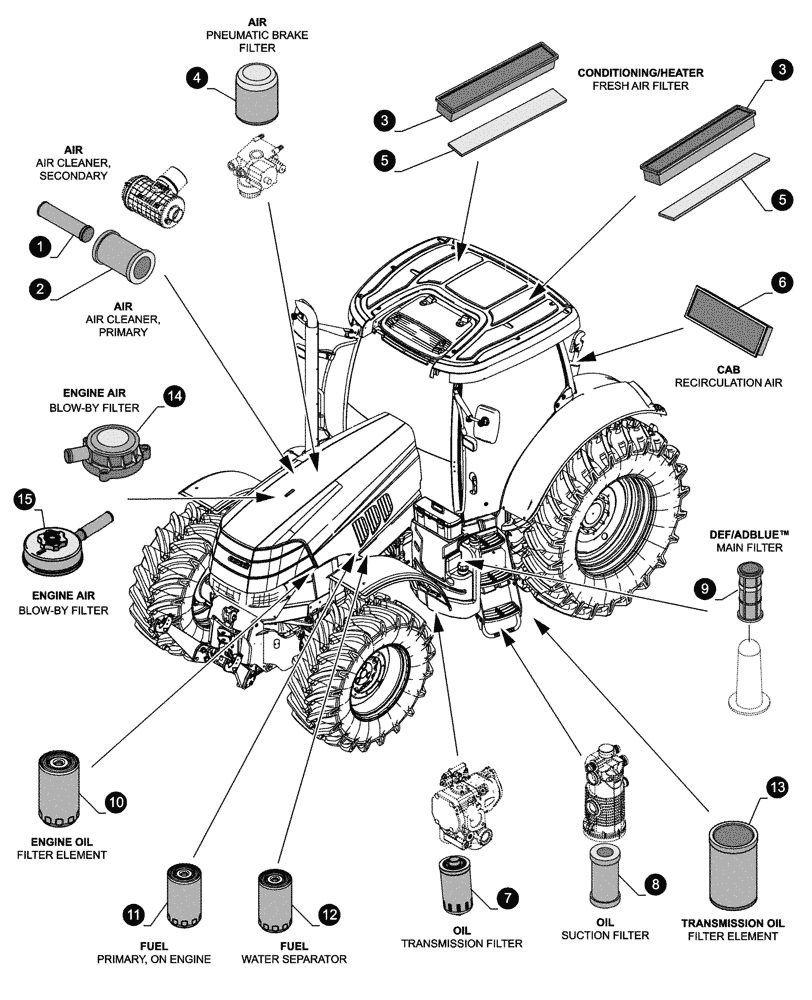

Запчасти Case IH PUMA 150 (05.100.04[01]) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

1

87683000

AIR FILTER,Safety, 108.5mm OD x 403.1mm L

Secondary Cartridge, on Air Cleaner, Every 1200 hours or every 2 years

1шт.

2

87682990

AIR FILTER,Primary, 105.9mm ID x 207.6mm OD x 409.5mm L

Outer Cartridge, on Air Cleaner, Every 600 hours

1шт.

3

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Paper, Fresh Air, Every 1200 hours or annually

2шт.

4

87638772

CARTRIDGE,165mm L

on Pneumatic Trailer Brakes Air Dryer, Every 1200 hours or every 2 years

1шт.

5

87726694

FOAM

Fresh Air, Pre-Filter, Every 1200 hours or annually

2шт.

6

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Paper Recirculation, Every 1200 hours or annually

1шт.

7

84417139

ELEMENT,267.5mm L, 11 Micron

on CCLS Hydraulic Pump, 289.5mm, Every 600 hours

1шт.

For the first Replacement order also : PN 84417137 Housing + PN 84550359 O-Ring

1шт.

Valid with PUMA 150 CVT-TRACTOR - TIER 4B, PUMA 150 CVX-TRACTOR - TIER 4B, PUMA 165 CVT-TRACTOR - TIER 4B, PUMA 165 CVX-TRACTOR - TIER 4B, PUMA 180 CVT-TRACTOR - TIER 4B, PUMA 180 CVX-TRACTOR - TIER 4B Models

1шт.

7

84226258

HYDRAULIC OIL FILTER,94mm OD x 240mm L, 1" 3/8-12UNF

on CCLS Hydraulic Pump, 285.4mm, Every 600 hours

1шт.

Valid with PUMA 150-TRACTOR - TIER 4B, PUMA 165-TRACTOR - TIER 4B Models

1шт.

8

87708150

HYDRAULIC OIL FILTER,Filter & Seal

Filter & Seal Suction, 32 Micron, Every 600 hours

1шт.

9

47364243

FILTER

Main, Denox Supply Module, Every 3600 hours or every 2 years

1шт.

10

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine Oil, Spin-On, Every 600 hours

1шт.

11

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Primary, on Engine, Every 600 hours

1шт.

12

47509565

FILTER

Primary, Every 600 hours

1шт.

13

87588814

HYDRAULIC OIL FILTER,151mm L

on Transmission Control Valve, 151mm, Every 600 hours

1шт.

Valid with PUMA 150 CVT-TRACTOR - TIER 4B, PUMA 150 CVX-TRACTOR - TIER 4B, PUMA 165 CVT-TRACTOR - TIER 4B, PUMA 165 CVX-TRACTOR - TIER 4B, PUMA 180 CVT-TRACTOR - TIER 4B, PUMA 180 CVX-TRACTOR - TIER 4B Models

1шт.

14

84196302

BREATHER,M30

Oil Vapour Separator, Every 1800 hours or every 2 years

1шт.

15

84231666

BREATHER,M30

Pre-filter, Every 1800 hours or every 2 years

1шт.
