(55.023.AB[02]) - VAR - 391136, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - CLUTCH, PEDAL, SENSOR

Запчасти Case IH PUMA 150 (55.023.AB[02]) - VAR - 391136, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - CLUTCH, PEDAL, SENSOR (55) - ELECTRICAL SYSTEMS

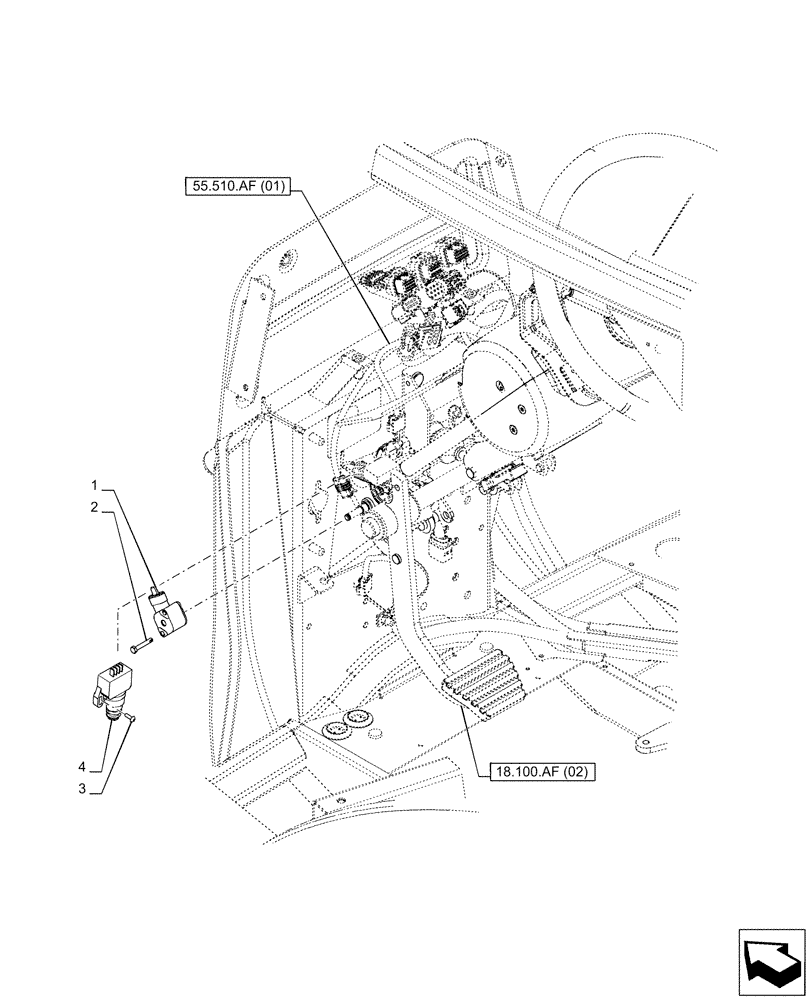

Схема запчастей Case IH PUMA 150 - (55.023.AB[02]) - VAR - 391136, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - CLUTCH, PEDAL, SENSOR (55) - ELECTRICAL SYSTEMS
4
2
55.510.af (01)
18.100.af (02)
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87605245

POTENTIOMETER,4000 Ohm, 13.5 VDC

1шт.

2

83963569

CAPTIVE WASHER SCREW,Pan Hd, M4 x 12mm, Cl 4.8

2шт.

3

84224890

BOLT,Hex, M5 x 30mm, Cl 8.8

M5 x 30

2шт.

4

82026949

PUSH BUTTON SWITCH

Clutch Pedal

1шт.

Выбрано товаров: 4
