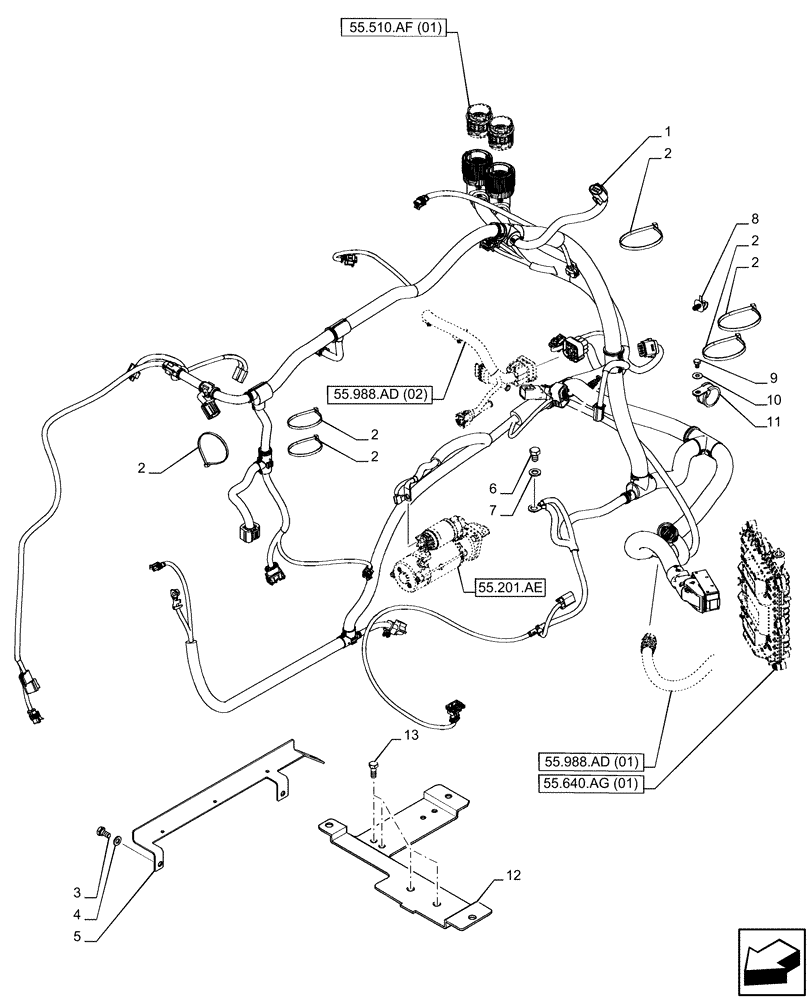

Запчасти Case IH PUMA 150 (55.015.AB) - VAR - 391130, 758000 - ENGINE, HARNESS (55) - ELECTRICAL SYSTEMS

1

47631724

WIRE HARNESS

Engine

1шт.

2

14560287

CABLE TIE,207.00mm L

6шт.

3

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

4

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

2шт.

5

87677801

BRACKET

Engine Harness Support

1шт.

6

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

1шт.

7

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

1шт.

8

82033028

CABLE TIE,170mm L

170mm

2шт.

9

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

1шт.

10

14498801

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

11

10442290

CLIP,30mm, Coat, P Type

30mm

1шт.

12

47646925

BRACKET

1шт.

13

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

3шт.
