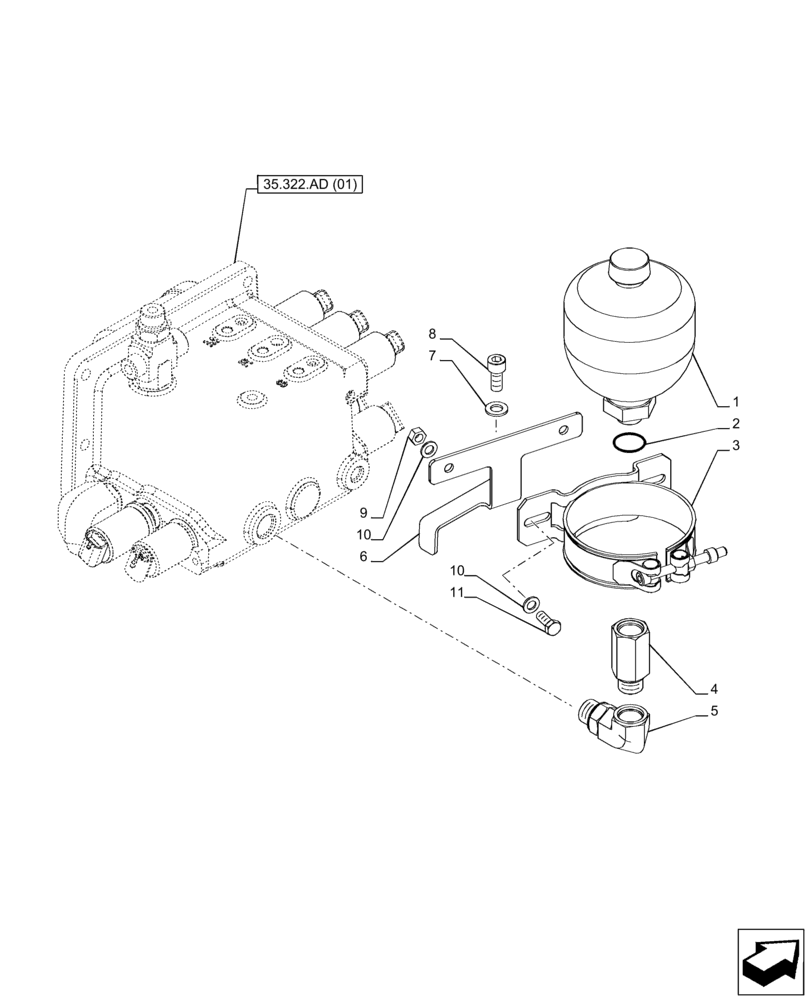

Запчасти Case IH PUMA 150 (35.322.BD[01]) - VAR - 391136, 758011, 758012, 758013, 758014, 758015, 758016 - LOW PRESSURE, ACCUMULATOR (35) - HYDRAULIC SYSTEMS

1

87314179

ACCUMULATOR,0.75L

1шт.

2

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

3

84282001

CLAMP,110 - 118mm D

1шт.

4

84281809

FITTING,M22 x 1.5 x M22 x 1.5

1шт.

5

87520335

HYD CONNECTOR,M22 x 1.5 x M22 x .5

1шт.

6

84281808

BRACKET

1шт.

7

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

8

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

1шт.

9

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

11

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.
