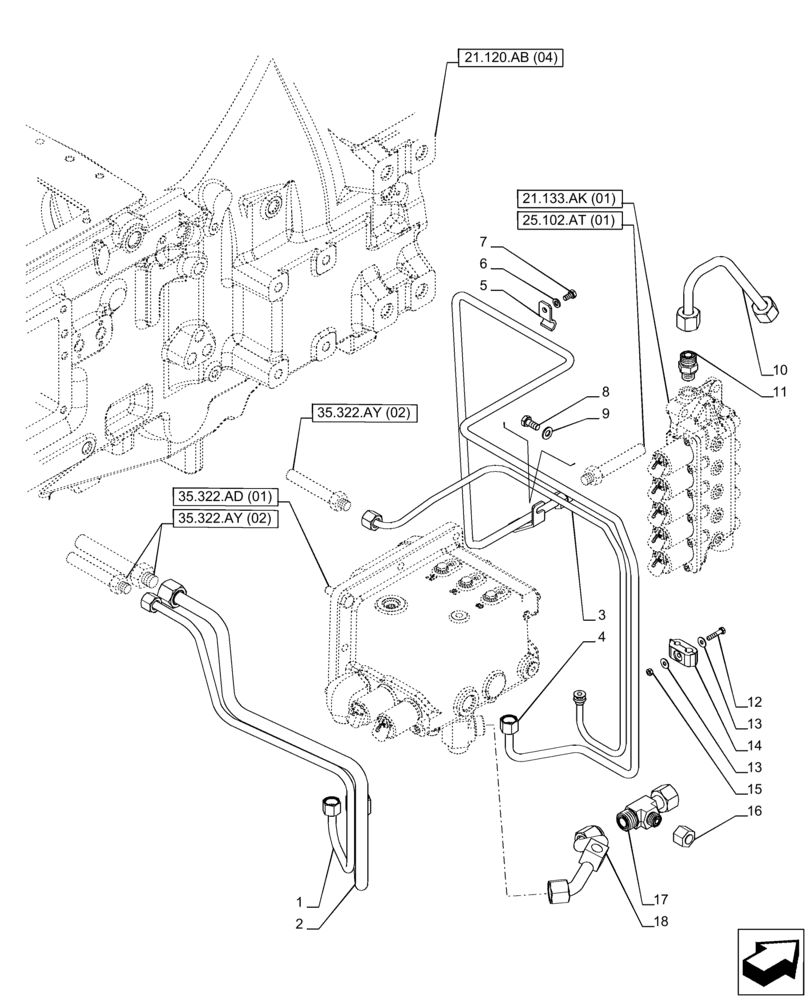

Запчасти Case IH PUMA 150 (35.322.AY[01]) - VAR - 391136, 758011, 758012, 758013, 758014, 758015 - TRANSMISSION, LOW PRESSURE, LINE (35) - HYDRAULIC SYSTEMS

1

87531656

PIPE

Rear PTO Clutch

1шт.

2

84281992

HYD TUBE

Remote Valve

1шт.

3

87531654

PIPE

PTO Brake

1шт.

4

84526536

PIPE

Front Differential Lock

1шт.

5

84332672

BRACKET

1шт.

6

10519421

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

1шт.

7

86977726

BOLT,Hex, M6 x 12mm, Cl 8.8

1шт.

8

86625000

BOLT,Hex, M8 x 18mm, Cl 8.8, Full Thd

1шт.

9

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

10

87671394

PIPE

Clutch

1шт.

11

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

12

10978231

BOLT,Hex, M5 x 25mm, Cl 10.9, Full Thd

1шт.

13

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

2шт.

14

84545054

BRACKET

1шт.

15

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

1шт.

16

9625546

CAP,11/16" - 16 ORFS

1шт.

17

84606880

TEE,11/16"-16 ORFS x 1"-14 ORFS x 1"-14

1шт.

18

84606318

PIPE

1шт.
