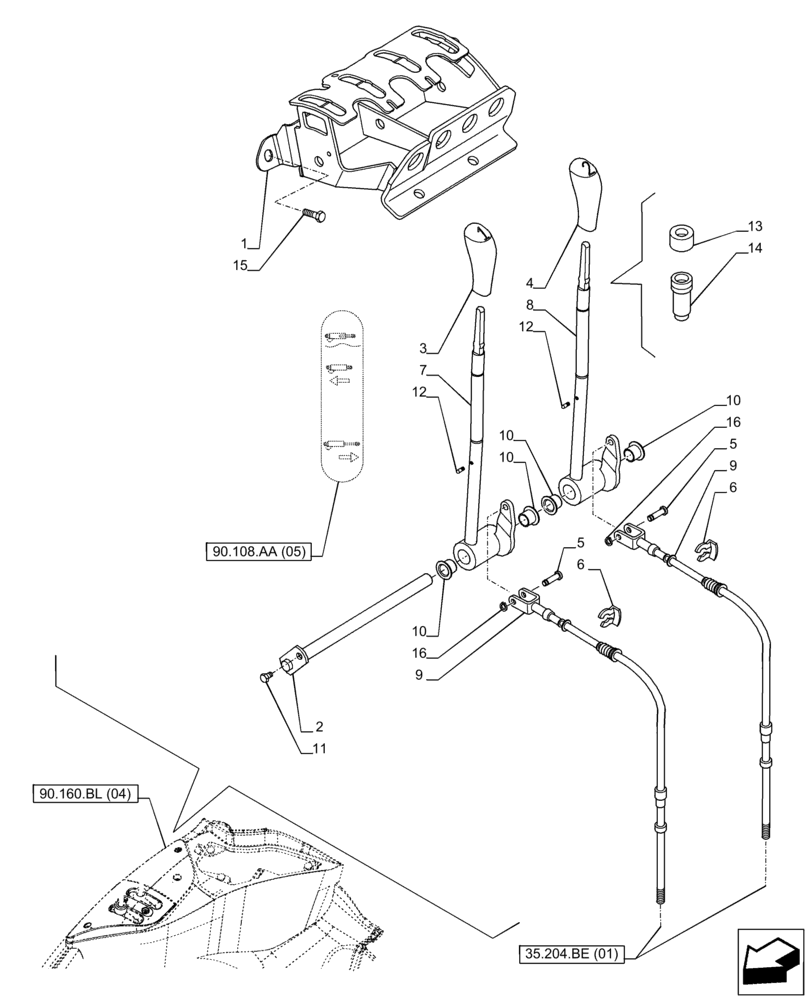

Запчасти Case IH PUMA 150 (35.204.BL[01]) - VAR - 391163 - 2 REMOTE CONTROL VALVE, CONTROL LEVER (35) - HYDRAULIC SYSTEMS

1

84373709

FRAME

Mechanical Remote Control

1шт.

2

84186398

HANDLED SHAFT

1шт.

3

82037910

KNOB

N. 1, Black

1шт.

4

82037911

KNOB

N. 2, Black

1шт.

5

82036373

CLEVIS PIN,5.96mm OD x 18.5mm L

2шт.

6

82007837

LOCKING RING

2шт.

7

84373726

LEVER

1st Remote Control

1шт.

8

84373733

LEVER

2nd Remote Control

1шт.

9

87525209

CABLE,1828mm L

2шт.

10

82035633

BUSHING

4шт.

11

10856821

BOLT,Hex, M5 x 8mm, Cl 8.8, Full Thd

1шт.

12

84209523

SPRING LOCK

2шт.

13

84209516

LOCKING DEVICE

Upper

2шт.

14

84209520

LOCKING DEVICE

Lower

3шт.

15

14307374

BOLT,Hex Skt, M10 x 1.25 x 20mm, Cl 12.9, Full Thd

4шт.

16

11087776

CIRCLIP,Ext., M6, BLO

2шт.
