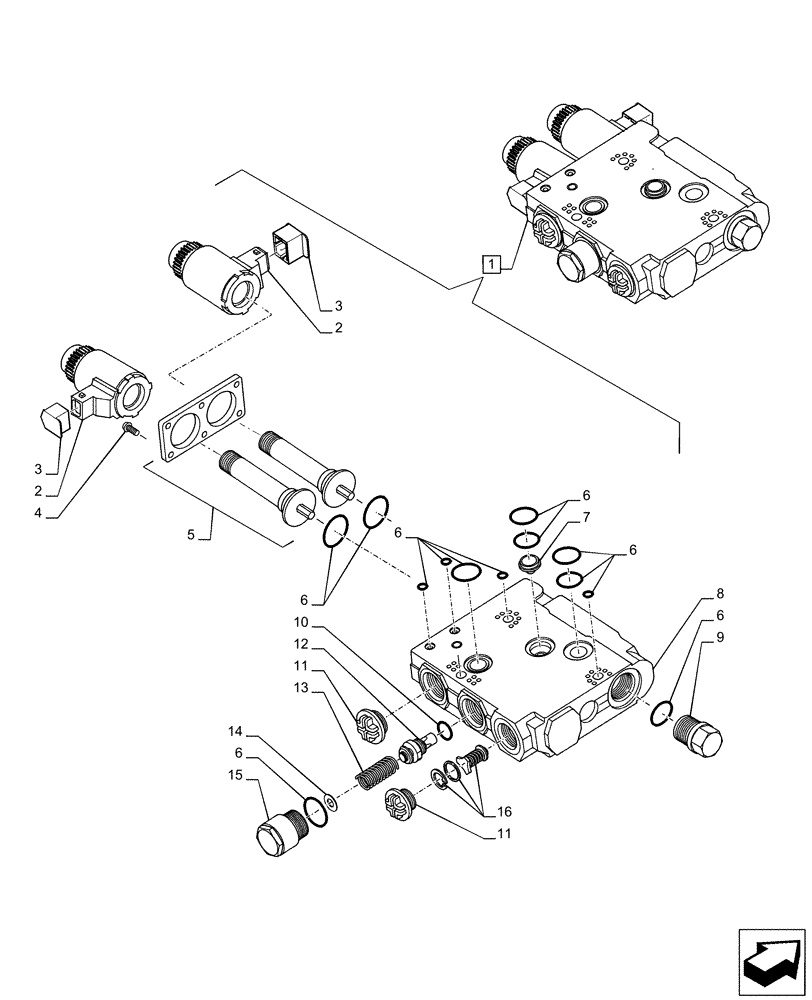

Запчасти Case IH PUMA 150 (35.204.BE[20]) - VAR - 391163, 391164, 391165, 758050, 758057, 758058, 758059, 758060 - CONTROL VALVE SECTION, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84175671

VALVE SECTION

ASSY, Incl 2 - 16

1шт.

1

84175671R

REMAN-HYD VALVE

1шт.

1

84175671C

CORE-VALVE HYD

Return Number

1шт.

2

5190768

COIL ASSY.

2шт.

3

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

4

47129409

SET SCREW,Oval Head

6шт.

5

84270220

SOLENOID,3.35A

1шт.

6

84312718

SEAL KIT

1шт.

7

84127100

SHUT-OFF VALVE

1шт.

8

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

9

87531487

PLUG

1шт.

10

87531495

O-RING,12.00mm ID x 1.75mm

1шт.

11

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

2шт.

12

47129415

INSERT

1шт.

13

47129411

SPRING

1шт.

14

47129406

SHIM,0.30mm T

1шт.

14

47129407

SHIM,0.40mm T

1шт.

14

47129416

SHIM,0.80mm T

1шт.

15

47129410

PLUG,Hex, 29.2mm OD

1шт.

16

84232107

REPAIR KIT

1шт.
