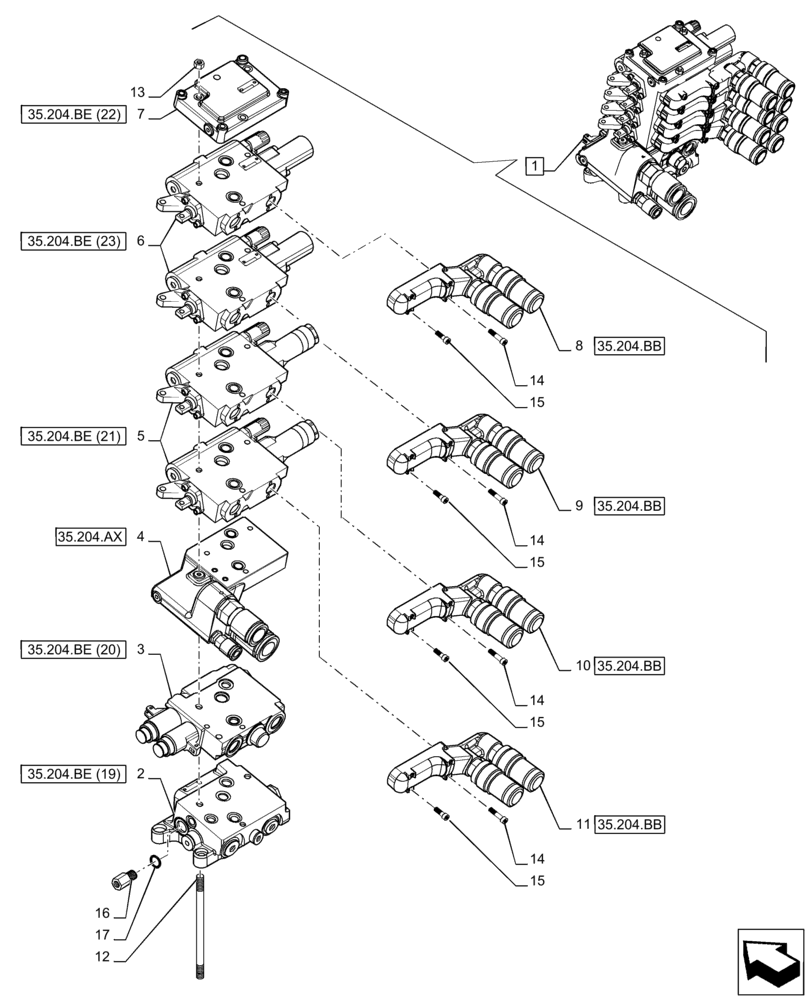

Запчасти Case IH PUMA 150 (35.204.BE[10]) - VAR - 758058 - 4 REMOTE CONTROL VALVE (MHR W/PB), COMPONENTS (35) - HYDRAULIC SYSTEMS

1

84266082

CONTROL VALVE

ASSY, Incl 2 - 16

1шт.

2

87730706

CONTROL VALVE

1шт.

2

87730706R

REMAN-HYD VALVE

1шт.

2

87730706C

CORE-VALVE HYD

Return Number

1шт.

3

84175671

VALVE SECTION

1шт.

3

84175671R

REMAN-HYD VALVE

1шт.

3

84175671C

CORE-VALVE HYD

Return Number

1шт.

4

84146807

HYD VALVE SECTION

1шт.

5

87328572

HYD VALVE SECTION

2шт.

5

87328572R

REMAN-HYD VALVE

2шт.

5

87328572C

CORE-VALVE HYD

Return Number

2шт.

6

87546169

CONTROL VALVE

2шт.

7

5192188

BODY

1шт.

8

87381965

QUICK MALE COUPLING

4 MHR

1шт.

9

87381964

QUICK MALE COUPLING

3 MHR

1шт.

10

87381963

QUICK MALE COUPLING

2 MHR

1шт.

11

87381958

QUICK MALE COUPLING

1 MHR

1шт.

12

84150182

THREADED TIE-ROD,291mm L

M8

3шт.

13

5195169

NUT,M8

M8

3шт.

14

47129474

HEX SOC SCREW,M6 x 35mm

M6

4шт.

15

47129475

HEX SOC SCREW,M6 x 50mm

M6

4шт.

16

5191704

CHECK VALVE

1шт.

17

5191705

O-RING,9.4mm D x 2.1mm Thk

1шт.
