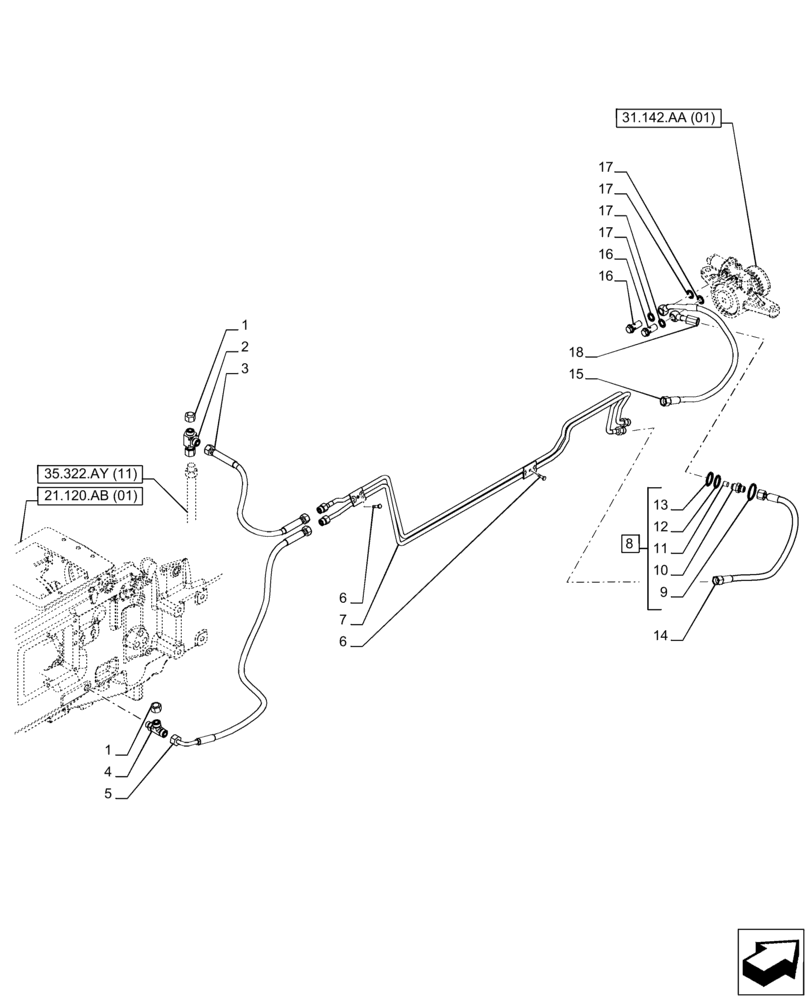

Запчасти Case IH PUMA 150 (31.142.AF[01]) - VAR - 758091, 758093, 758245, 758247 - FRONT PTO ASSY, LINE (31) - IMPLEMENT POWER TAKE OFF

1

47123020

PLUG,Hex

2шт.

2

86514261

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1шт.

3

47378044

HOSE,6.4mm ID x 540mm L

1шт.

4

87315465

HYD CONNECTOR,13/16"-16 ORFS x 13/16"-16 ORFS x M16 x 1.5 ORB

1шт.

5

47378046

HOSE,6.4mm ID x 1095mm L

1шт.

6

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

7

47604639

PIPE

1шт.

8

47127491

HYD CONNECTOR,M10 x 1 x 7.4mm L

ASSY, Incl 9 - 13

1шт.

9

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

10

47127489

HYD CONNECTOR,11/16"-16, M16 x 1.5

1шт.

11

47127332

ORIFICE,M10 x 1

1шт.

12

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

1шт.

13

14437585

O-RING,8.00mm ID x 1.50mm

1шт.

14

87731117

HYDRAULIC HOSE,6.00mm ID x 460.00mm

1шт.

15

87731125

HYDRAULIC HOSE,6.00mm ID x 550.00mm

1шт.

16

87736841

BANJO BOLT,M16 x 1.5 x 34mm

2шт.

17

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

4шт.

18

47057815

TUBE

1шт.
