(25.122.AM[02]) - VAR - 758045, 758046 - FRONT AXLE, SUSPENDED, CONTROL VALVE, LINE, POWERSHIFT

Запчасти Case IH PUMA 150 (25.122.AM[02]) - VAR - 758045, 758046 - FRONT AXLE, SUSPENDED, CONTROL VALVE, LINE, POWERSHIFT (25) - FRONT AXLE SYSTEM

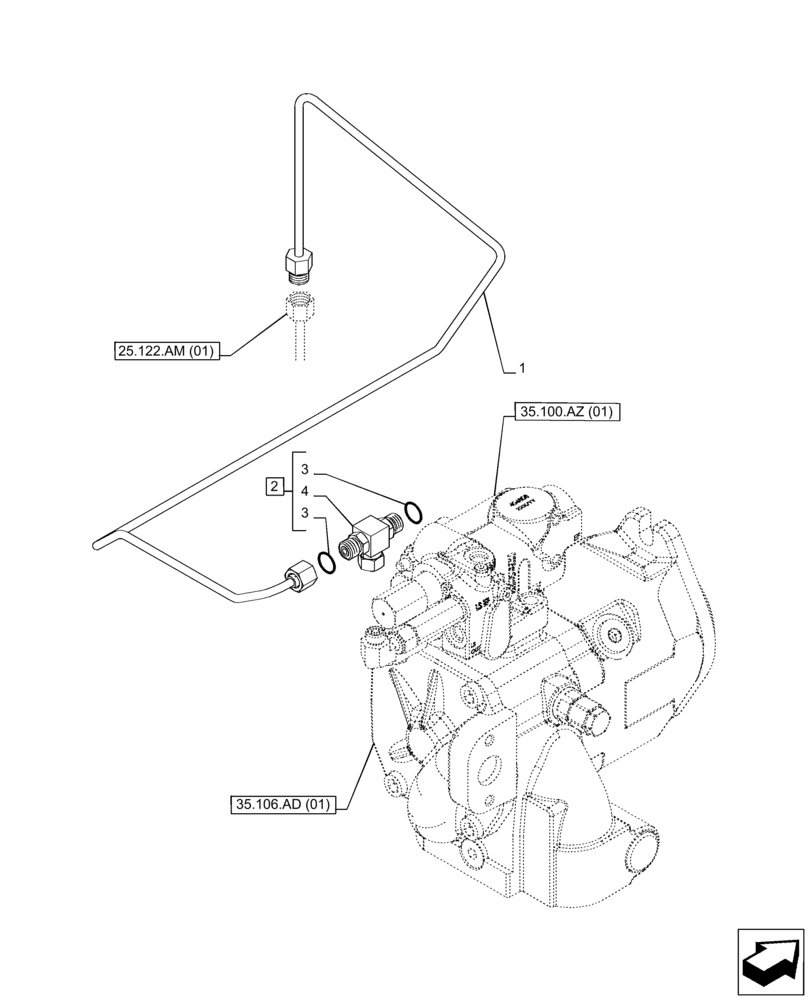

Схема запчастей Case IH PUMA 150 - (25.122.AM[02]) - VAR - 758045, 758046 - FRONT AXLE, SUSPENDED, CONTROL VALVE, LINE, POWERSHIFT (25) - FRONT AXLE SYSTEM
2
35.106.ad (01)
35.100.az (01)
25.122.am (01)
3
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47585903

PIPE

LS

1шт.

2

82018814

CHECK VALVE,9/16" - 18 JIC x 9/16" - 18 ORFS x 9/16" - 18 ORFS

ASSY, Incl 3, 4

1шт.

3

81844850

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

4

NSS

NOT SOLD SEPARAT

Check Valve, Incl in 2

1шт.
