(23.314.AB[06]) - VAR - 391136 - 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - PROPELLER SHAFT, POWERSHIFT

Запчасти Case IH PUMA 150 (23.314.AB[06]) - VAR - 391136 - 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - PROPELLER SHAFT, POWERSHIFT (23) - FOUR WHEEL DRIVE SYSTEM

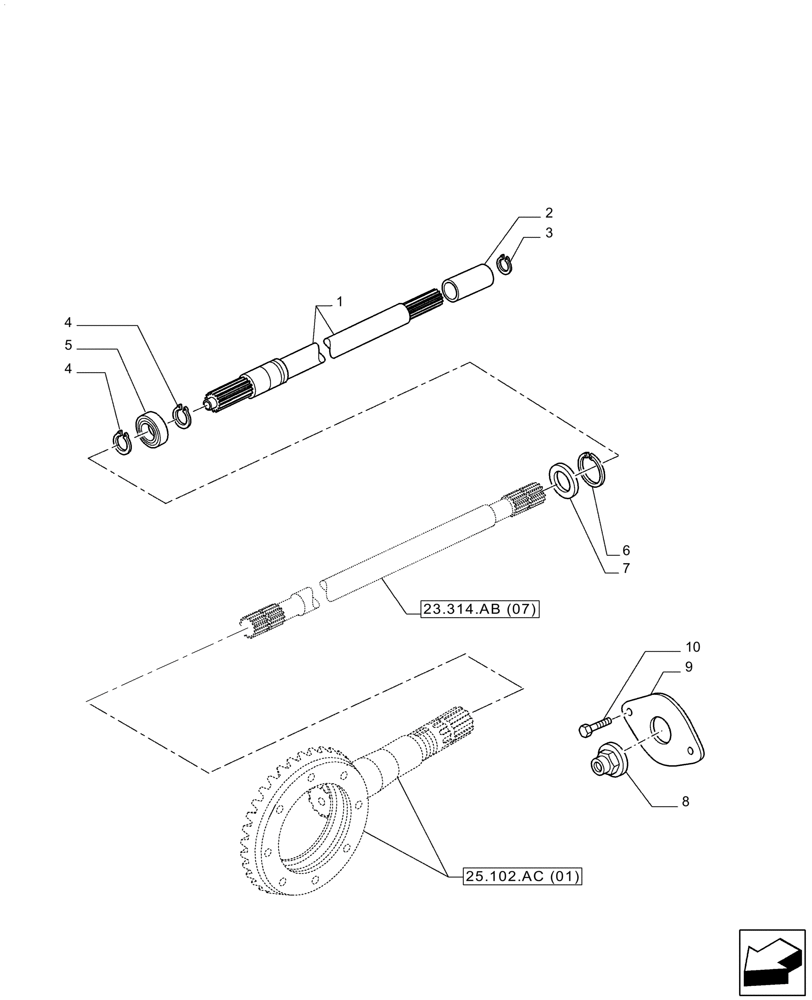

Схема запчастей Case IH PUMA 150 - (23.314.AB[06]) - VAR - 391136 - 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - PROPELLER SHAFT, POWERSHIFT (23) - FOUR WHEEL DRIVE SYSTEM
25.102.ac (01)
4
2
9
3
10
4
6
1
5
7
8
23.314.ab (07)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87599007

SHAFT,953mm L

1шт.

2

5172239

SPLINED COUPLING,12T

1шт.

3

11058876

SNAP RING,M30, Int

1шт.

4

11068876

SNAP RING,M40, Ext

2шт.

5

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

6

11061976

SNAP RING,M80, Int

1шт.

7

47134818

SEAL,40mm ID x 80mm OD x 15mm Thk

1шт.

8

5111953

NUT,M24 x 1.5

1шт.

9

47135527

FLANGE

1шт.

10

15970624

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 10
