Запчасти Case IH PUMA 150 (23.314.AB[05]) - VAR - 391136, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - DRIVE HYDRAULIC CLUTCH, SHIM, POWERSHIFT (23) - FOUR WHEEL DRIVE SYSTEM

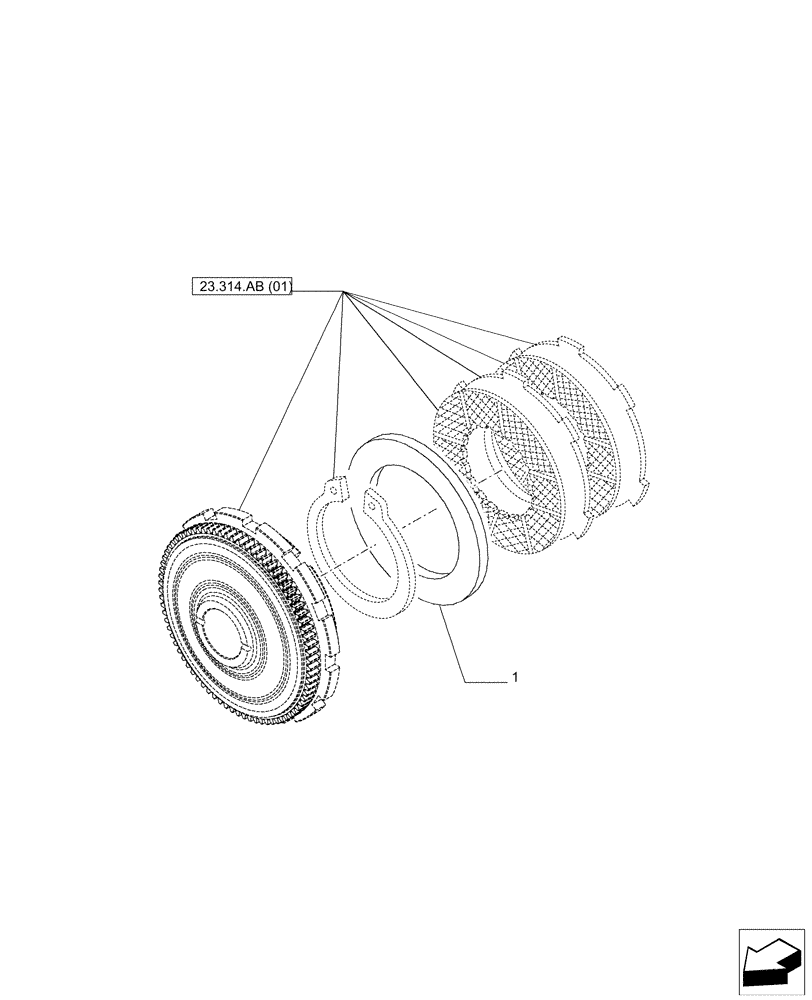

Схема запчастей Case IH PUMA 150 - (23.314.AB[05]) - VAR - 391136, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - DRIVE HYDRAULIC CLUTCH, SHIM, POWERSHIFT (23) - FOUR WHEEL DRIVE SYSTEM
23.314.ab (01)
1

Артикул

Название

Примечание

Количество

1

5139456

DISC,97.3mm ID x 140mm OD x 7.5mm Thk

1шт.

1

5144563

DISC,97.30mm - 97.50mm ID x 140.00mm OD x 7.70mm T

1шт.

1

5144564

DISC,97.3mm ID x 140mm OD x 7.9mm Thk

1шт.

1

5144565

DISC,97.30mm - 97.50mm ID x 140.00mm OD x 8.10mm T

1шт.

1

5144566

DISC,97.3mm ID x 140mm OD x 8.3mm Thk

1шт.

1

5144567

DISC,97.30mm - 97.50mm ID x 140.00mm OD x 8.30mm T

1шт.

1

5144568

DISC,97.3mm ID x 140mm OD x 8.7mm Thk

1шт.

1

5156715

DISC,97.3mm ID x 140mm OD x 7.3mm Thk

1шт.

1

5156716

DISC,97.5mm ID x 140mm OD x 7.1mm Thk

1шт.

1

5156857

DISC,97.3mm ID x 140mm OD x 8.9mm Thk

1шт.

1

5156858

DISC,97.30mm - 97.50mm ID x 140.00mm OD x 9.10mm T

1шт.

1

5156859

DISC,97.30mm - 97.50mm ID x 140.00mm OD x 9.30mm T

1шт.

1

5156860

DISC,97.30mm - 97.50mm ID x 140.00mm OD x 9.50mm T

1шт.

1

5156861

DISC,97.30mm - 97.50mm ID x 140.00mm OD x 9.70mm T

1шт.

1

5156862

DISC,97.30mm - 97.50mm ID x 140.00mm OD x 9.90mm T

1шт.

1

5156863

DISC,97.3mm ID x 140mm OD x 10.1mm Thk

1шт.

Выбрано товаров: 16
