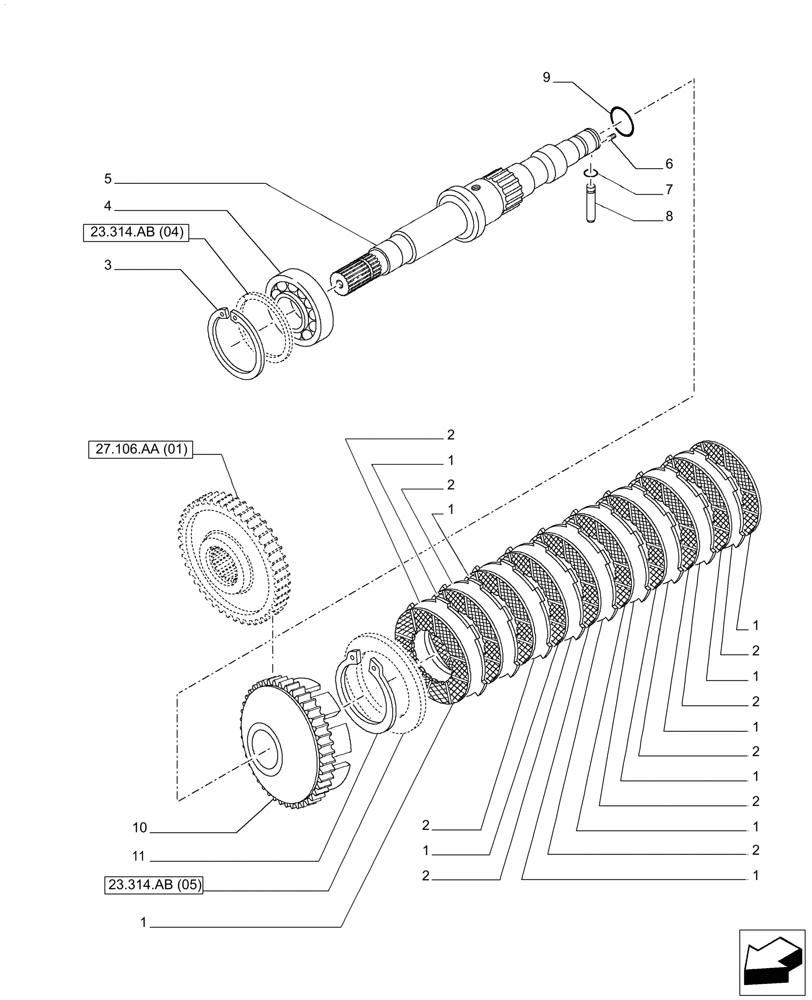

Запчасти Case IH PUMA 150 (23.314.AB[01]) - VAR - 391136, 758011, 758012, 758013, 758014, 758015, 758016, 758017, 758018, 758019, 758020, 758021 - DRIVE HYDRAULIC CLUTCH, POWERSHIFT (23) - FOUR WHEEL DRIVE SYSTEM

1

5163904

DISC

10шт.

2

84177629

DRIVE PLATE,99mm ID x 152mm OD x 1.5mm Thk

9шт.

3

11061976

SNAP RING,M80, Int

1шт.

4

26799960

TAPERED BEARING,40mm ID x 80mm OD x 19.75mm W

1шт.

5

5183786

SHAFT,287mm L

1шт.

6

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

7

14453080

O-RING,0.426" ID x 0.07"

1шт.

8

14516210

DOWEL,M7 x 45

1шт.

9

14459080

O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro

1шт.

10

84148960

DRIVING GEAR,Z57

1шт.

10

87495765

DRIVING GEAR,Z58

1шт.

11

5139462

SNAP RING,3mm Thk

1шт.
