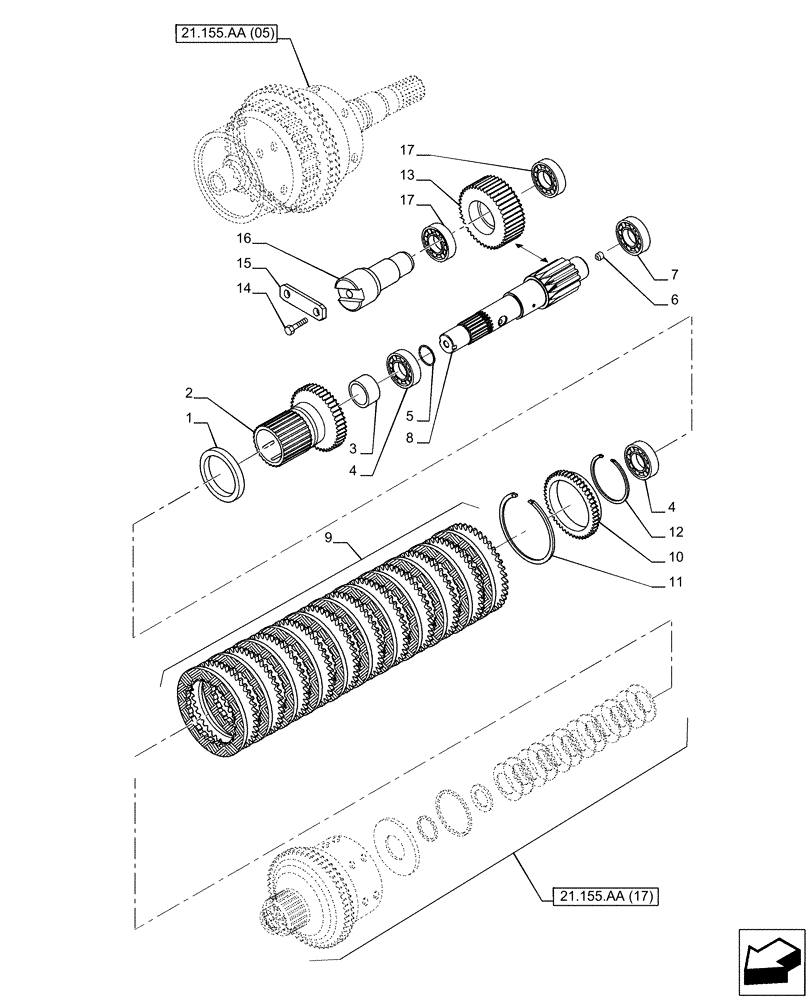

Запчасти Case IH PUMA 150 (21.155.AA[16]) - VAR - 758016, 758017, 758018, 758019, 758020, 758021 - CENTRAL REDUCTION GEAR, CLUTCH, GEAR, REVERSER (21) - TRANSMISSION

1

81865152

SEAL,107.72mm ID x 116.32mm OD x 3.8mm Thk

1шт.

2

5185166

GEAR,31T, 52T

Reverse

1шт.

3

5185165

SPACER,55.1mm ID x 64mm OD x 28mm L

1шт.

4

28042510

BALL BEARING,55mm x 90mm x 18mm

2шт.

5

13398976

SNAP RING,M40, Int

1шт.

6

5183120

SCREW,M14 x 1.5 x 12mm, Cl 12.9

1шт.

7

5185575

NEEDLE BEARING,55mm ID x 100mm OD x 25mm W

1шт.

8

5185169

SHAFT,322mm L

Drive Gear

1шт.

9

87530794

CLUTCH PACK

1шт.

10

5179115

DISC,117.02mm ID x 154.35mm OD x 12.5mm Thk

1шт.

11

47132979

CIRCLIP,2mm Thk

1шт.

12

5183706

THRUST WASHER,55.1mm ID x 89mm OD x 1mm Thk

1шт.

13

5179293

GEAR,Z39

1шт.

14

14238021

LOCK BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

15

5179133

PLATE

1шт.

16

5172246

PIN,39.98mm OD x 115mm L

1шт.

17

20915780

BALL BEARING,40mm ID x 80mm OD x 18mm W

2шт.
