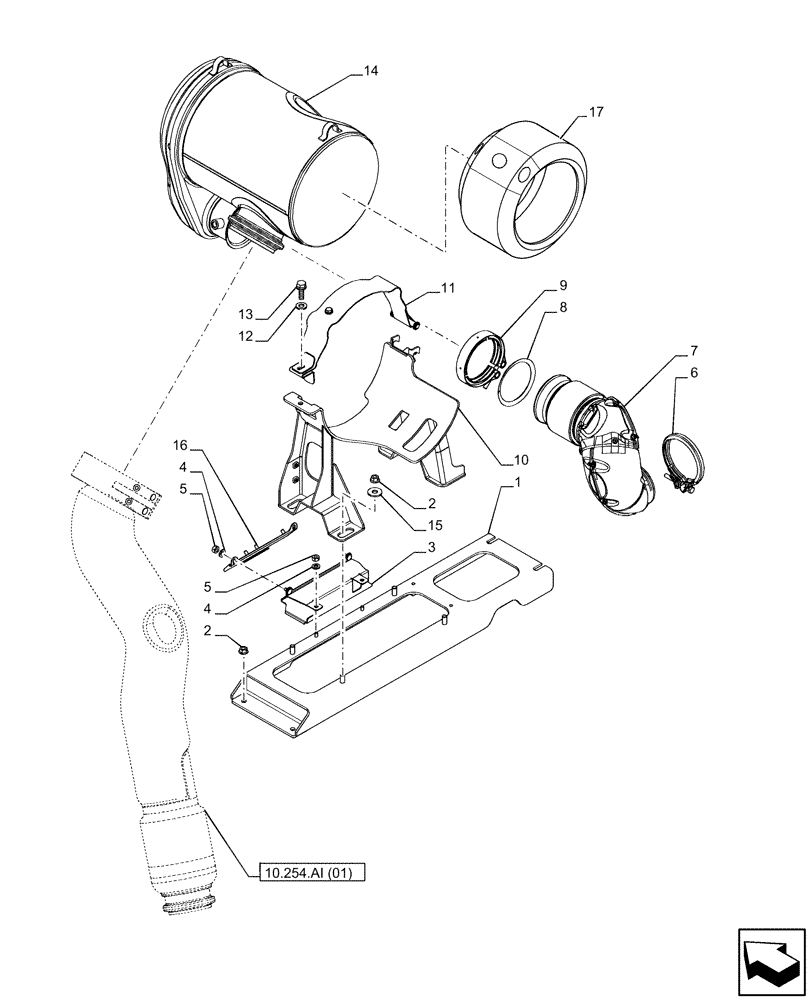

Запчасти Case IH PUMA 150 (10.501.AD[02]) - VAR - 391130, 758000 - EXHAUST SYSTEM, CATALYTIC (10) - ENGINE

1

47629599

SUPPORT

1шт.

2

47455668

NUT,Hex, M10

8шт.

3

47635198

BRACKET

1шт.

4

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.

5

15896211

NUT,M6, Cl 8

4шт.

6

47423211

CLAMP,118mm - 124mm

1шт.

7

47459465

EXHAUST SYSTEM PIPE

1шт.

8

47683516

GASKET,94mm ID x 117mm OD x 3.8mm TK

1шт.

9

47390967

CLAMP,123.5mm ID

1шт.

10

47637270

BRACKET

Muffler

1шт.

11

47582322

RETAINER COLLAR

1шт.

12

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

13

86625002

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

1шт.

14

47536970

MUFFLER,Aspirated

1шт.

15

47563181

WASHER,12.2mm ID x 32mm OD x 3mm Thk

12.2 x 32 x 3

4шт.

16

47635200

BRACKET

1шт.

17

47658166

BOOT

1шт.
