(90.160.CD) - VAR - 332722, 332723, 392114, 392115 - COVER, PANEL, PEDAL

Запчасти Case IH PUMA 150 (90.160.CD) - VAR - 332722, 332723, 392114, 392115 - COVER, PANEL, PEDAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

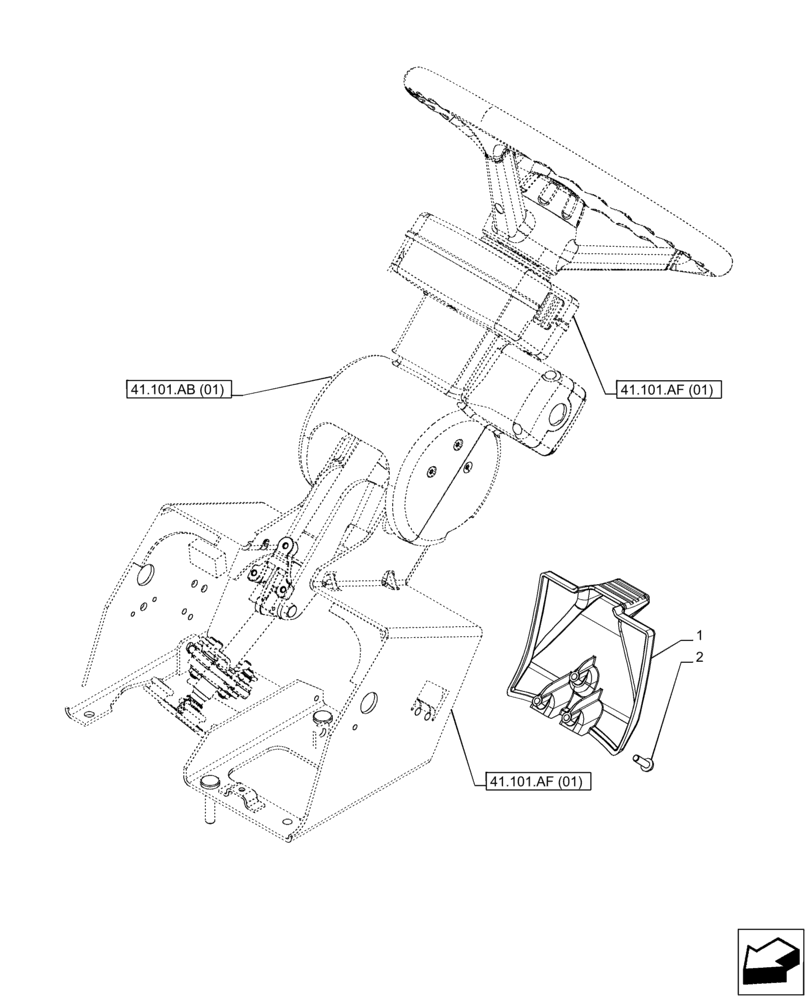

Схема запчастей Case IH PUMA 150 - (90.160.CD) - VAR - 332722, 332723, 392114, 392115 - COVER, PANEL, PEDAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
41.101.af (01)
41.101.af (01)
1
2
41.101.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47413729

COVER

Rear Pedal

1шт.

2

84187817

SCREW,Torx Pan Hd, M6 x 20mm, Cl 4.8

M6 x 20

3шт.

Выбрано товаров: 2
