(90.160.BL[07]) - VAR - 758023 - PTO, CONTROLS, COVER RH

Запчасти Case IH PUMA 150 (90.160.BL[07]) - VAR - 758023 - PTO, CONTROLS, COVER RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

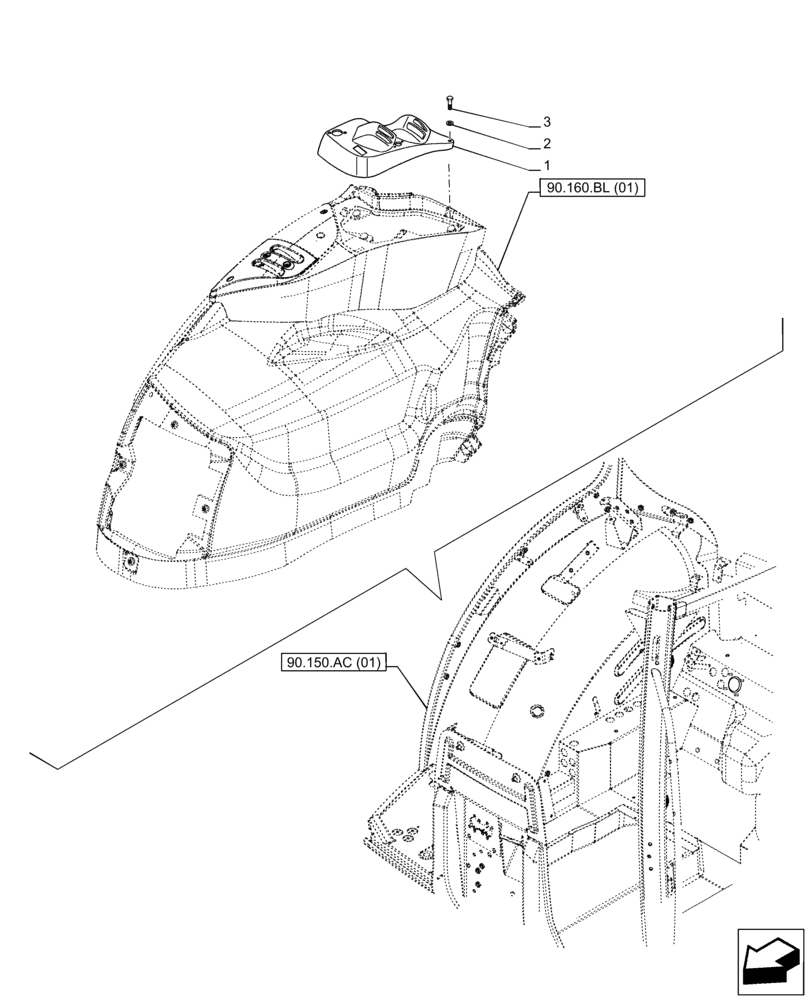

Схема запчастей Case IH PUMA 150 - (90.160.BL[07]) - VAR - 758023 - PTO, CONTROLS, COVER RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.bl (01)
1
3
2
90.150.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84315958

COVER

PTO, RH

1шт.

2

14446821

WASHER,3.6mm ID x 10mm OD x 0.6mm Thk

6шт.

3

82880809

SCREW,Pan, M4 x 8mm, Gr 4.8

6шт.
