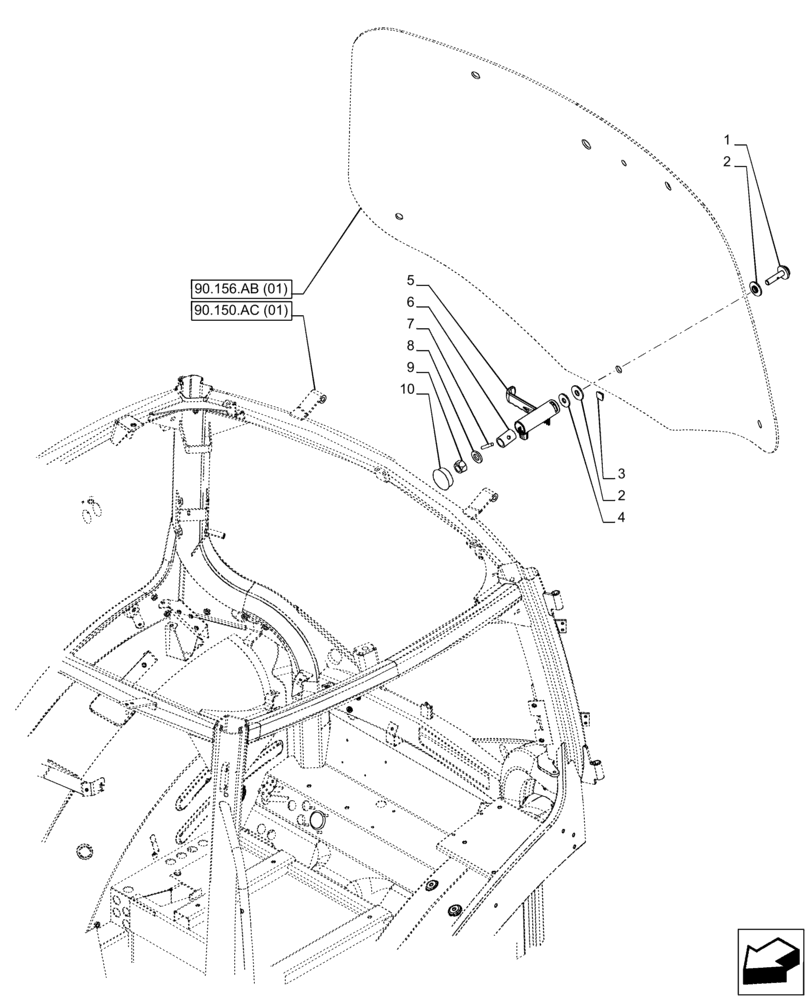

Запчасти Case IH PUMA 150 (90.156.AA[04]) - VAR - 758142, 758143, 758145, 758146 - WINDOW, REAR, HANDLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47464541

BOLT,M12 x 1.75 x 57mm

Groove

1шт.

2

81865223

SEALING WASHER,12.8mm ID x 36mm OD x 6.5mm Thk

2шт.

3

84390533

RUBBER BLOCK,19.8mm L x 19.8mm W x 6.4mm Thk

1шт.

4

83995286

SEALING WASHER,M12.5 x 35 x 3 Thk

1шт.

5

87541759

HANDLE

Window, Back

1шт.

6

83995351

SPACER,12mm ID x 16mm OD x 24.1mm L

Back Window Handle

1шт.

7

47435892

GROOVED PIN,4mm OD x 30mm L

1шт.

8

81865231

WASHER,13mm ID x 24mm OD x 3mm Thk

13 x 24 x 3

1шт.

9

100038

NUT,M12 x 1.75, Cl 8

1шт.

10

83961986

PLUG,30mm

1шт.
