Запчасти Case IH PUMA 150 (90.151.AT[03]) - VAR - 758153 - GARU ARMREST, MONITOR, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

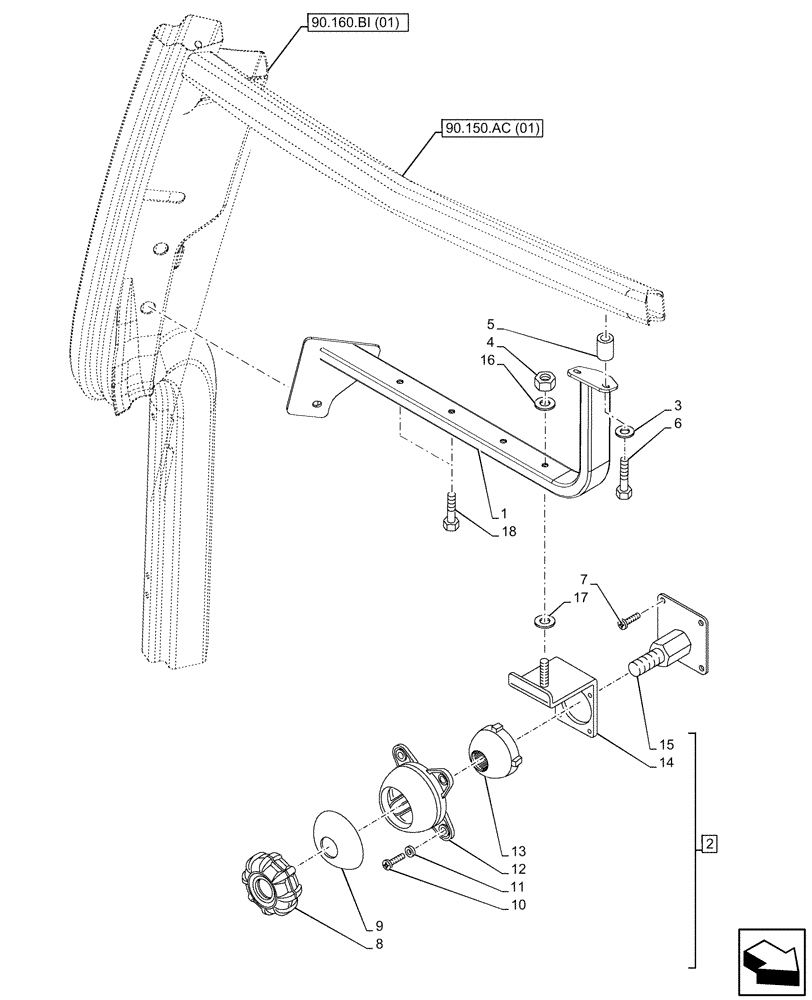

Схема запчастей Case IH PUMA 150 - (90.151.AT[03]) - VAR - 758153 - GARU ARMREST, MONITOR, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (01)
12
10
11
4
16
15
3
1
5
14
17
13
8
18
9
2
7
6
90.160.bi (01)

Артикул

Название

Примечание

Количество

1

84340967

SUPPORT

Black

1шт.

2

87614599

SUPPORT

ASSY, Incl 8 - 15

1шт.

3

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

4

11701711

NUT,Hex, M10, Cl 8, ZND

1шт.

5

87681589

SPACER,8mm ID x 11mm OD x 16mm L

2шт.

6

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

7

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

4шт.

8

87316701

KNOB

1шт.

9

87316706

CUP,23mm ID x 68.6mm OD, Black

1шт.

10

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

11

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

12

87614602

BASE

1шт.

13

87614603

CUP,Black

1шт.

14

87614600

BRACKET

1шт.

15

87565605

SUPPORT

1шт.

16

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

17

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

18

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 18
