(90.151.AD[07]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, SEAT BELT

Запчасти Case IH PUMA 150 (90.151.AD[07]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

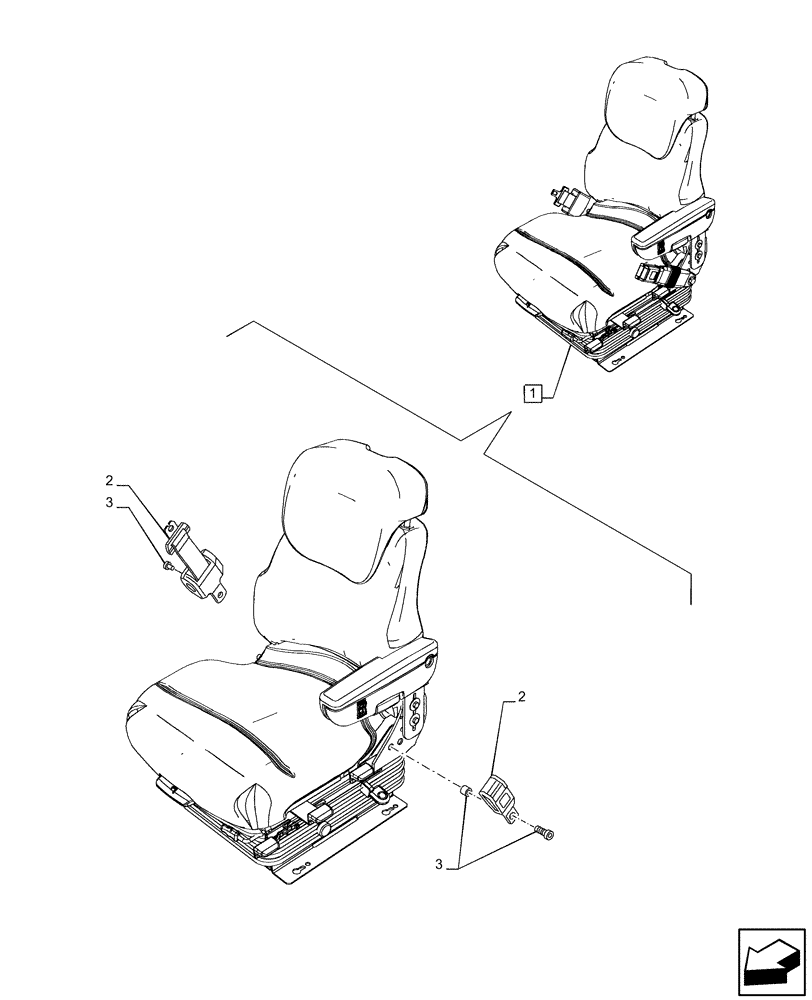

Схема запчастей Case IH PUMA 150 - (90.151.AD[07]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84171555

DRIVER SEAT

W/Air Suspension, Assy, Incl 2 - 3

1шт.

See Driver Seat Components also in Figure 55.512.CQ (07), 90.124.AD (07), 90.124.AE (07), 90.124.AH (07)

1шт.

See Driver Seat Components also in Figure 90.124.AL (07), 90.124.AK (08), 90.124.AM (07)

1шт.

2

82020831

KIT

1шт.

3

NSS

NOT SOLD SEPARAT

Slide Rail Mountings, Incl in 1

1шт.
