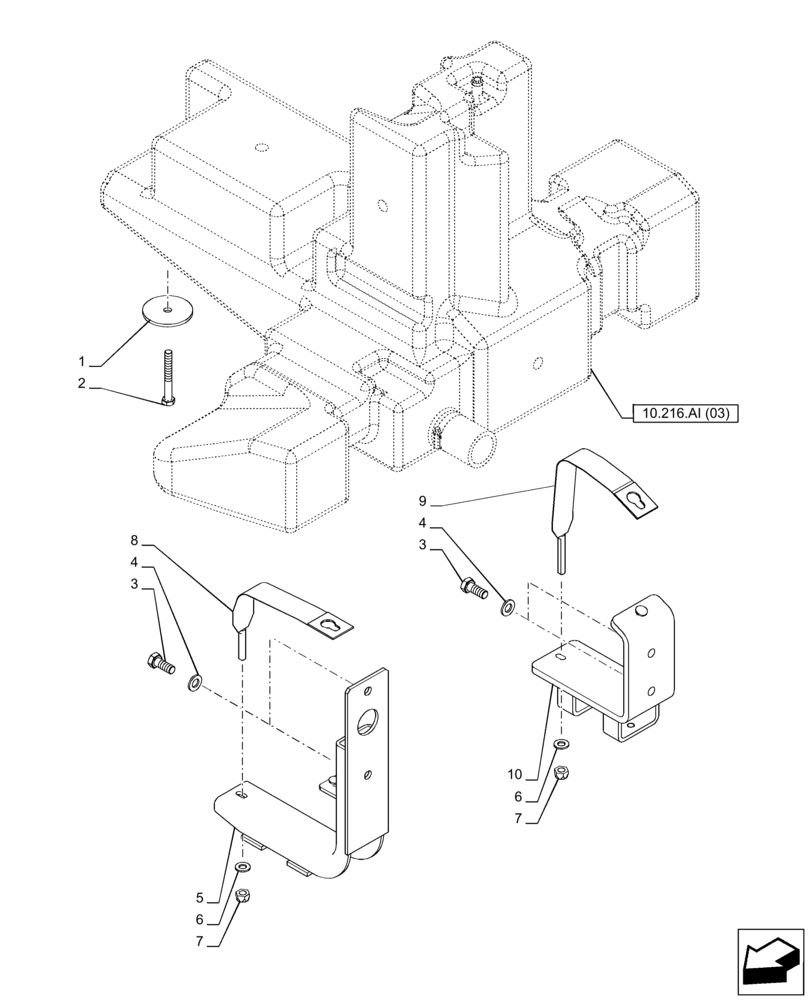

Запчасти Case IH PUMA 150 (10.216.AI[12]) - VAR - 335491, 335492 - FUEL TANK, SUPPORT, RH (10) - ENGINE

1

84596792

WASHER,11.0mm ID x 70mm OD x 4.5mm Thk

11 x 70 x 4.5

1шт.

2

120116

SCREW,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

3

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

4

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

5

84331082

HOLDER

Front

1шт.

6

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

7

100037

LOCK NUT,M10 x 1.5, Cl 8

2шт.

8

84321450

STRAP

Front

1шт.

9

84321729

STRAP,289mm L

Rear

1шт.

10

84331053

HOLDER

Rear

1шт.
