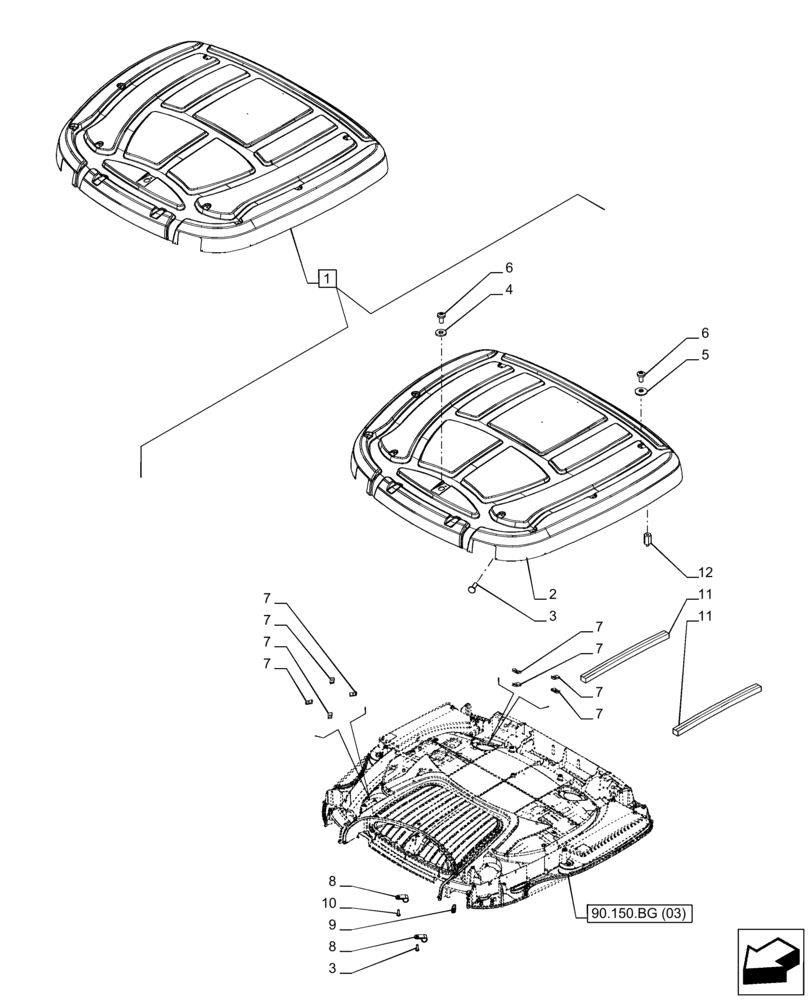

Запчасти Case IH PUMA 150 (90.150.BG[02]) - VAR - 391179, 758140, 758142, 758145 - CAB ROOF, CARRIER, COMPONENTS (ISO MARKET PACKAGE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NS

NOT SERVICED

Roof ASSY, ISO, Red, Less High Visibility Window, Order Components, Incl 2 - 12

1шт.

2

84316054

ROOF

ISO, Less High Visibility Window

1шт.

3

82034112

SELF-TAP SCREW,Pan, M3 x 10mm

11шт.

4

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6 x 16

1шт.

5

82037891

SEALING WASHER,6mm ID x 19mmOD x 1.5mm Thk

6.7 x 19.0

1шт.

6

83998908

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 4.8, Full Thd

9шт.

7

81872135

NUT,Retaining, M4.20

16шт.

8

87343422

CLAMP

2шт.

9

87537655

GROMMET,14mm ID x 36mm OD, Rubber, Black

Wire

1шт.

10

82034113

SELF-TAP SCREW,Torx, Round HD, M5 x 3 x 25mm

1шт.

11

82035600

GASKET

Outer Roof

2шт.

12

82034114

SPACER,M6 x 25mm L

M6

8шт.
