Запчасти Case IH PUMA 150 (90.124.AL[04]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

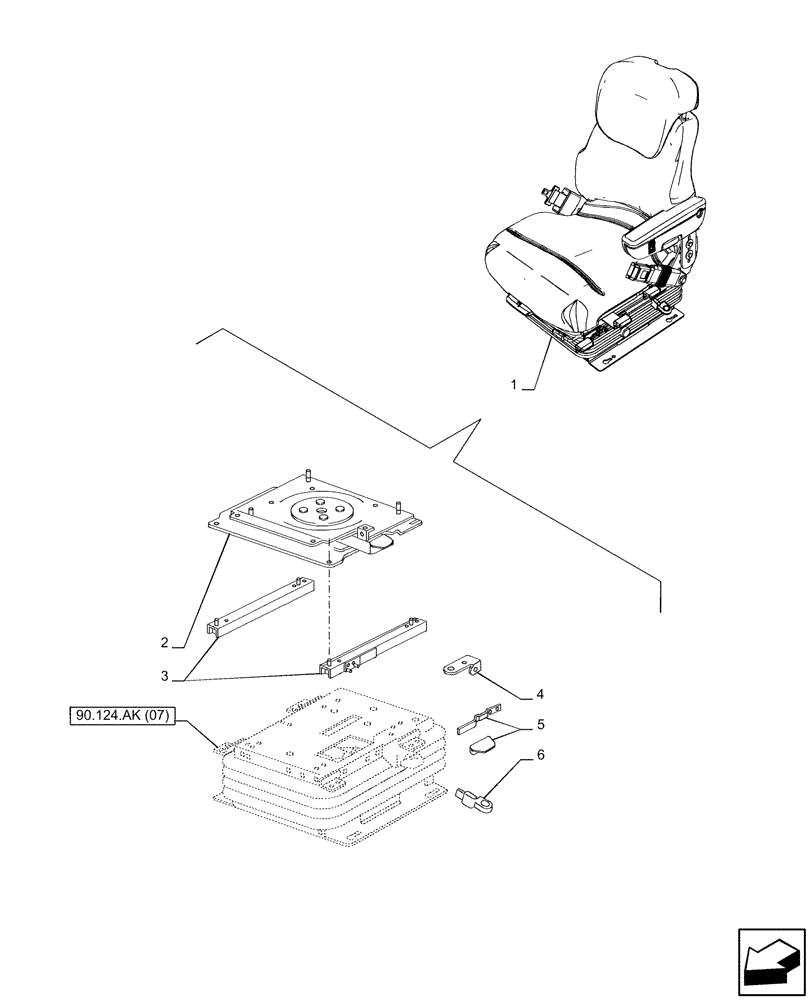

Схема запчастей Case IH PUMA 150 - (90.124.AL[04]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, SLIDE GUIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ak (07)
5
3
2
1
6
4

Артикул

Название

Примечание

Количество

1

87706661

SEAT

W/Air Suspension, Assy, Incl 2 - 6

1шт.

See Driver Seat Components also in Figure 55.512.CQ (04), 90.124.AD (04), 90.124.AE (04)

1шт.

See Driver Seat Components also in Figure 90.124.AH (04), 90.124.AK (07)

1шт.

See Driver Seat Components Also in Figure 90.124.AM (04), 90.151.AD (04)

1шт.

2

84155804

PIVOT PLATE

1шт.

3

82020814

SERVICE KIT

1шт.

4

82020923

BRACKET

1шт.

5

82020809

SERVICE KIT

1шт.

6

82020839

KIT

1шт.

Выбрано товаров: 9
