Запчасти Case IH PUMA 150 (90.124.AK[07]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, ADJUSTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

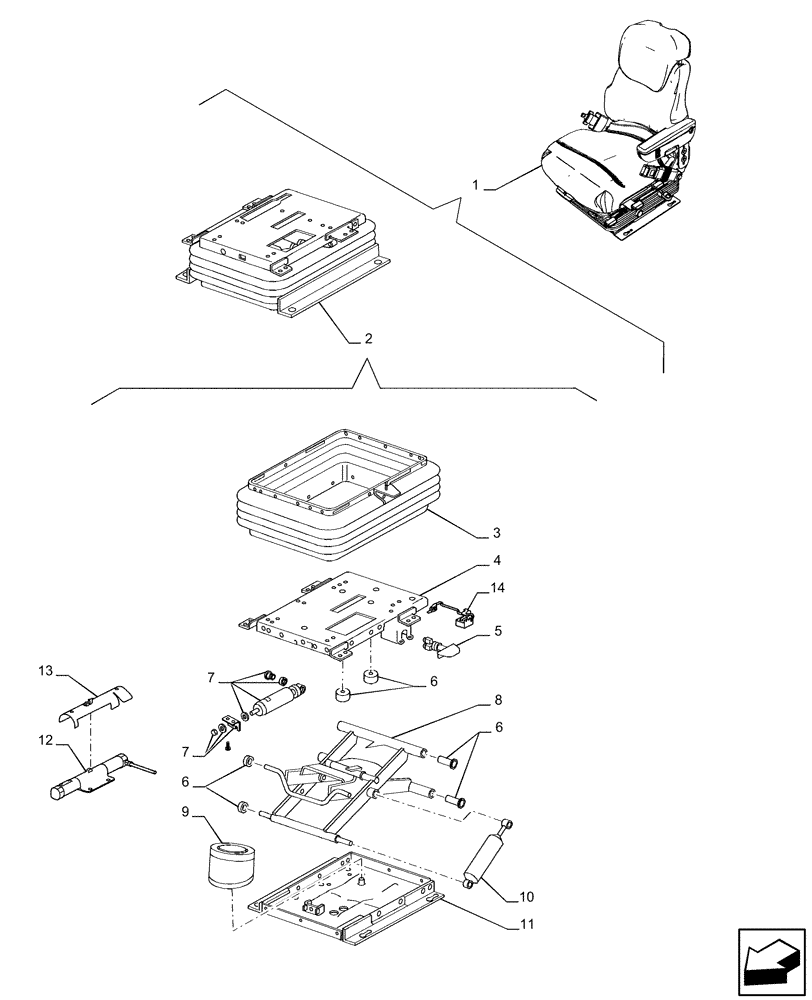

Схема запчастей Case IH PUMA 150 - (90.124.AK[07]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, ADJUSTER (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
11
3
9
1
6
13
7
14
4
6
5
6
12
10
8
2

Артикул

Название

Примечание

Количество

1

87706661

SEAT

W/Air Suspension, Assy, Incl 2 - 14

1шт.

See Driver Seat Components also in Figure 55.512.CQ (04), 90.124.AD (04), 90.124.AH (04), 90.124.AE (04)

1шт.

See Driver Seat Components also in Figure 90.124.AL (04), 90.124.AM (04), 90.151.AD (04)

1шт.

2

87529827

SUSPENSION

Incl 3 - 14

1шт.

3

82020843

KIT

1шт.

4

87583455

HOUSING

1шт.

5

82021020

SERVICE KIT

1шт.

6

82020845

SERVICE KIT

1шт.

7

82020830

SERVICE KIT

1шт.

8

82020846

KIT

1шт.

9

82020819

KIT

1шт.

10

87529993

SUSPENSION

1шт.

11

87529826

REPAIR KIT

1шт.

12

87529821

AIR RESERVOIR

1шт.

13

87583456

COVER

1шт.

14

87529794

BOX

1шт.

Выбрано товаров: 16
