Запчасти Case IH PUMA 150 (90.124.AK[02]) - VAR - 391176, 758255, 758256 - DRIVER SEAT, ADJUSTER, SHOCK ABSORBER (90) - PLATFORM, CAB, BODYWORK AND DECALS

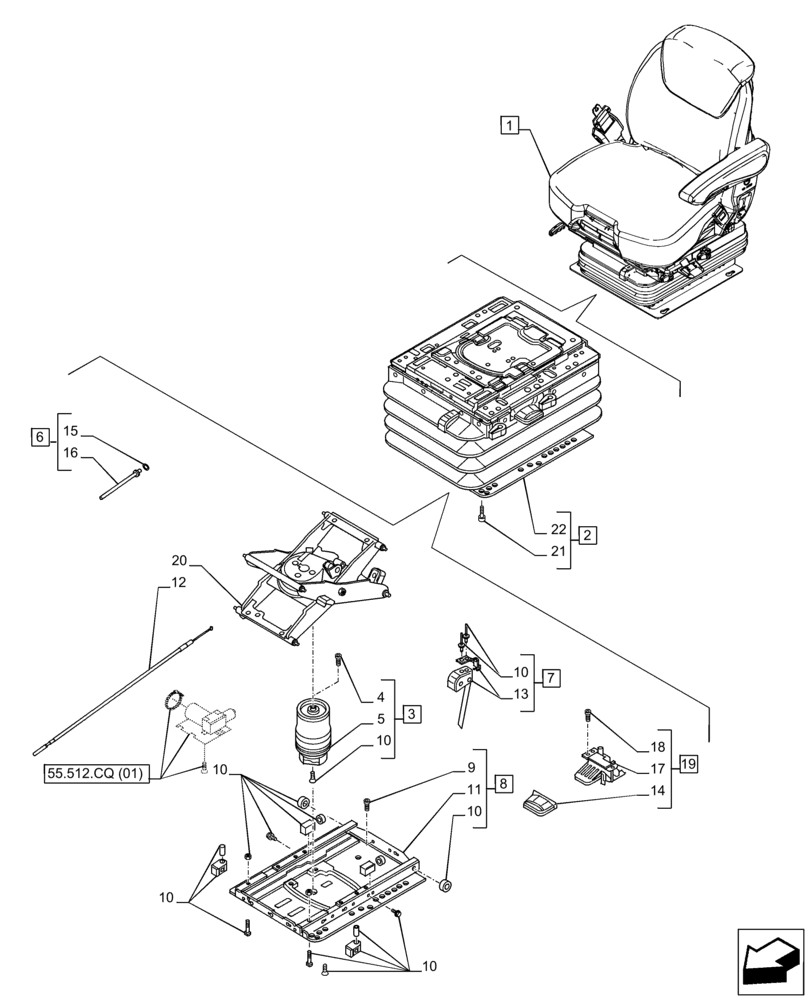

Схема запчастей Case IH PUMA 150 - (90.124.AK[02]) - VAR - 391176, 758255, 758256 - DRIVER SEAT, ADJUSTER, SHOCK ABSORBER (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
2
20
21
13
19
17
10
10
11
7
1
6
16
12
5
22
18
10
10
8
10
55.512.cq (01)
15
9
3
10
4

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

W/Air Suspension, ASSY, Incl 2 - 22

1шт.

See Driver Seat Components also in Figure 55.512.CQ (01), 90.124.AD (01), 90.124.AE (01), 90.124.AH (01)

1шт.

See Driver Seat Components also in Figure 90.124.AK (01) (03), 90.124.AL (01), 90.124.AM (01), 90.151.AD (01)

1шт.

2

NSS

NOT SOLD SEPARAT

Suspension, ASSY, Incl in 1, Incl 21, 22

1шт.

3

84190972

SHOCK ABSORBER

ASSY, Incl 4, 5, 10

1шт.

4

84191012

REPAIR KIT

Air Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 3

1шт.

6

84190991

TUBE

Inner, ASSY, Incl 15, 16

1шт.

7

84190962

KIT

ASSY, Incl 10, 13

1шт.

8

84190976

PLATE

ASSY, Incl 9 - 11

1шт.

9

84191014

REPAIR KIT

Lower Part

1шт.

10

84190975

REPAIR KIT

1шт.

11

NSS

NOT SOLD SEPARAT

Plate, Incl in 8

1шт.

12

84190997

BOWDEN CONTROL

1шт.

13

NSS

NOT SOLD SEPARAT

Level Indicator, Incl in 7

1шт.

14

84191000

HANDLE

1шт.

15

84191016

REPAIR KIT

Inner Tube

1шт.

16

NSS

NOT SOLD SEPARAT

Tube, Inner, Incl in 6

1шт.

17

NSS

NOT SOLD SEPARAT

Lever, Incl in 19

1шт.

18

84191017

REPAIR KIT

Height Adjuster

1шт.

19

345107A1

LEVER

ASSY, Incl 14, 17, 18

1шт.

20

NSS

NOT SOLD SEPARAT

Scissor, Incl in 1

1шт.

21

84191020

REPAIR KIT

Mounting Part

1шт.

22

NSS

NOT SOLD SEPARAT

Suspension, Incl in 2

1шт.

Выбрано товаров: 24
