Запчасти Case IH PUMA 150 (90.124.AK[01]) - VAR - 391176, 758255, 758256 - DRIVER SEAT, ADJUSTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

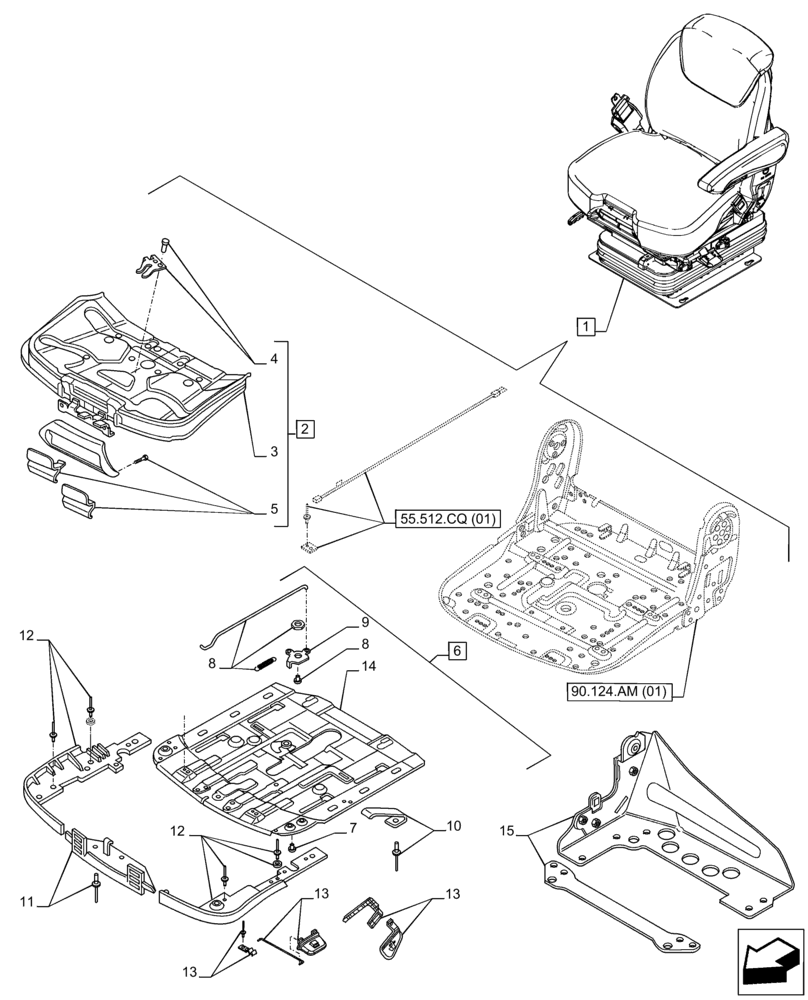

Схема запчастей Case IH PUMA 150 - (90.124.AK[01]) - VAR - 391176, 758255, 758256 - DRIVER SEAT, ADJUSTER (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
8
1
13
8
3
55.512.cq (01)
15
12
6
7
2
13
14
90.124.am (01)
11
13
12
10
5
4

Артикул

Название

Примечание

Количество

1

84215889

DRIVER SEAT

W/Air Suspension, ASSY, Incl 2 - 15

1шт.

See Driver Seat Components also in Figure 55.512.CQ (01), 90.124.AD (01), 90.124.AE (01), 90.124.AH (01)

1шт.

See Driver Seat Components also in Figure 90.124.AK (02) (03), 90.124.AL (01), 90.124.AM (01), 90.151.AD (01)

1шт.

2

84191153

ADJUSTER

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Adjuster, Incl in 2

1шт.

4

1-34-751-739

FIXING PLATE

1шт.

5

84191160

TRIGGER

1шт.

6

84191167

ADJUSTER

ASSY, Incl 7 - 14

1шт.

7

84191202

SET OF PARTS

Cushion

1шт.

8

84191203

CONTROL LEVER

1шт.

9

345775A1

LEVER

1шт.

10

84191175

SEAT PLATE

1шт.

11

1-34-751-728

COVER

1шт.

12

1-34-751-727

COVER

1шт.

13

82034960

LEVER

1шт.

14

NSS

NOT SOLD SEPARAT

Adjuster, Incl in 6

1шт.

15

84191195

SUPPORT

Armrest

1шт.

Выбрано товаров: 17
