Запчасти Case IH PUMA 150 (90.124.AE[07]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, W/ AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

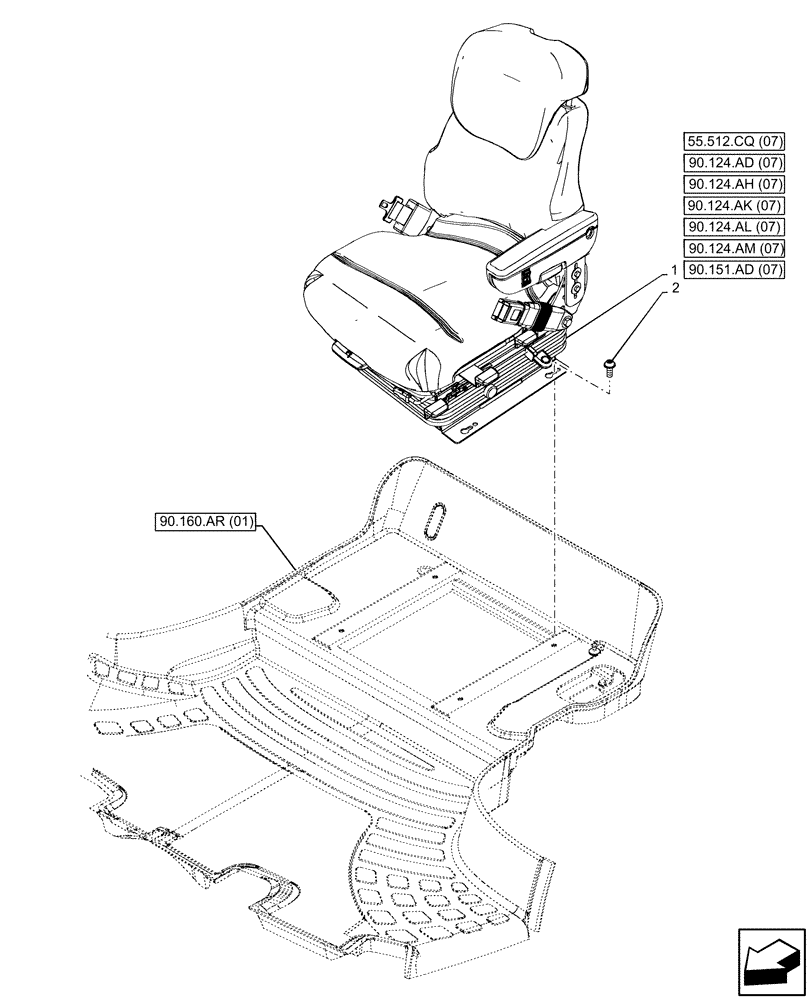

Схема запчастей Case IH PUMA 150 - (90.124.AE[07]) - VAR - 758260, 758261, 758262, 758263 - DRIVER SEAT, W/ AIR SUSPENSION (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.ar (01)
1
2
55.512.cq (07)
90.151.ad (07)
90.124.ad (07)
90.124.al (07)
90.124.am (07)
90.124.ah (07)
90.124.ak (07)

Артикул

Название

Примечание

Количество

1

84171555

DRIVER SEAT

W/Air Suspension

1шт.

See Driver Seat Components also in Figure 55.512.CQ (07), 90.124.AD (07), 90.124.AH (07), 90.124.AK (08)

1шт.

See Driver Seat Components also in Figure 90.124.AL (07), 90.124.AM (07), 90.151.AD (07)

1шт.

2

84187826

FLANGE BOLT,Torx Rnd Hd, M8 x 20mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 4
