(90.124.AE[02]) - VAR - 758257, 758258, 758259 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ MECHANICAL REMOTES, MOUNTING

Запчасти Case IH PUMA 150 (90.124.AE[02]) - VAR - 758257, 758258, 758259 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ MECHANICAL REMOTES, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

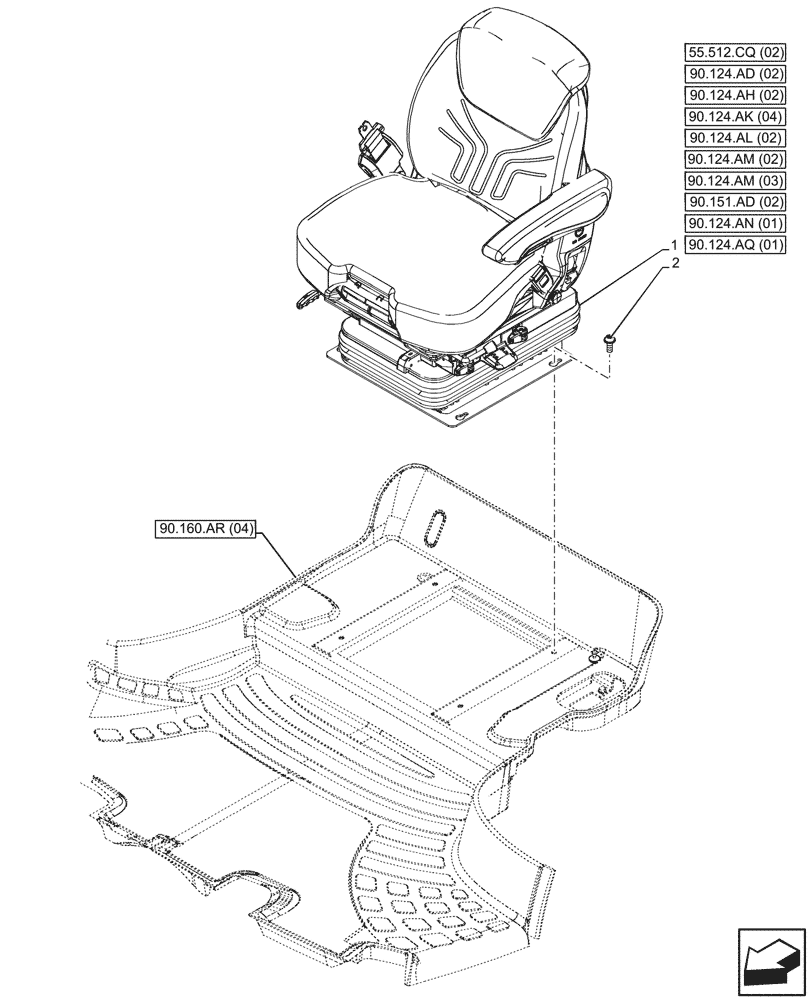

Схема запчастей Case IH PUMA 150 - (90.124.AE[02]) - VAR - 758257, 758258, 758259 - DRIVER SEAT, GRAMMER DELUXE SEAT, W/ LOW FREQUENCY AIR SUSPENSION, W/ HEATED CUSHIONS, W/ MECHANICAL REMOTES, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.ar (04)
1
2
90.124.an (01)
90.124.aq (01)
90.124.am (03)
90.124.am (02)
55.512.cq (02)
90.124.ad (02)
90.124.al (02)
90.124.ah (02)
90.124.ak (04)
90.151.ad (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84171102

SEAT

Deluxe Seat with Low Frequency Suspension with Heated Cushions & Belt Mech Remotes, ASSY

1шт.

2

47875286

SCREW,Torx, Pan HD, M8 x 38mm, Cl 8.8

4шт.
