Запчасти Case IH PUMA 150 (10.216.AI[07]) - VAR - 758001 - FUEL TANK, SUPPORT (10) - ENGINE

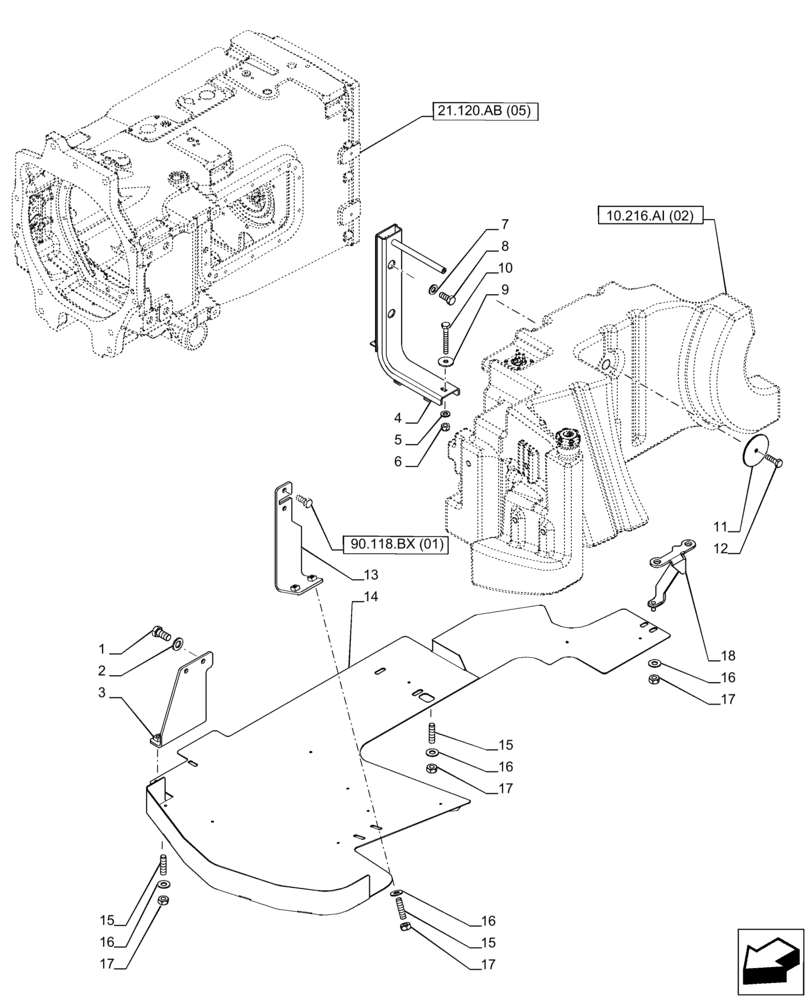

Схема запчастей Case IH PUMA 150 - (10.216.AI[07]) - VAR - 758001 - FUEL TANK, SUPPORT (10) - ENGINE
17
16
6
16
18
15
90.118.bx (01)
10
2
7
12
1
8
5
9
17
21.120.ab (05)
11
15
13
16
3
10.216.ai (02)
14
17
16
4
15
17

Артикул

Название

Примечание

Количество

1

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

2

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

3

84382451

SUPPORT

Fuel Tank Shield, Rear

1шт.

4

84390879

SUPPORT

Fuel Tank, Rear

1шт.

5

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

6

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

7

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

8

15540424

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

12644301

WASHER,M10 x 35 x 3

1шт.

10

120116

SCREW,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

11

84388777

SPACER,11mm ID x 120mm OD x 1mm L

1шт.

12

11106624

SCREW,Hex, M10 x 1.5 x 35 mm, Cl 8.8, Full Thd

1шт.

13

84382449

SUPPORT

Fuel Tank Shield, Front

1шт.

14

47471247

SHIELD

1шт.

15

82008683

STUD,M10 x 1.25 x 40mm L

6шт.

16

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

7шт.

17

12164711

NUT,M10 x 1.25, Cl 8

7шт.

18

47374215

SUPPORT

Fuel Tank

1шт.

18

47375452

BRACKET

Fuel Tank

1шт.

Выбрано товаров: 19
