Запчасти Case IH PUMA 150 (90.118.BX[03]) - VAR - 332585, 392117 - LADDER, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

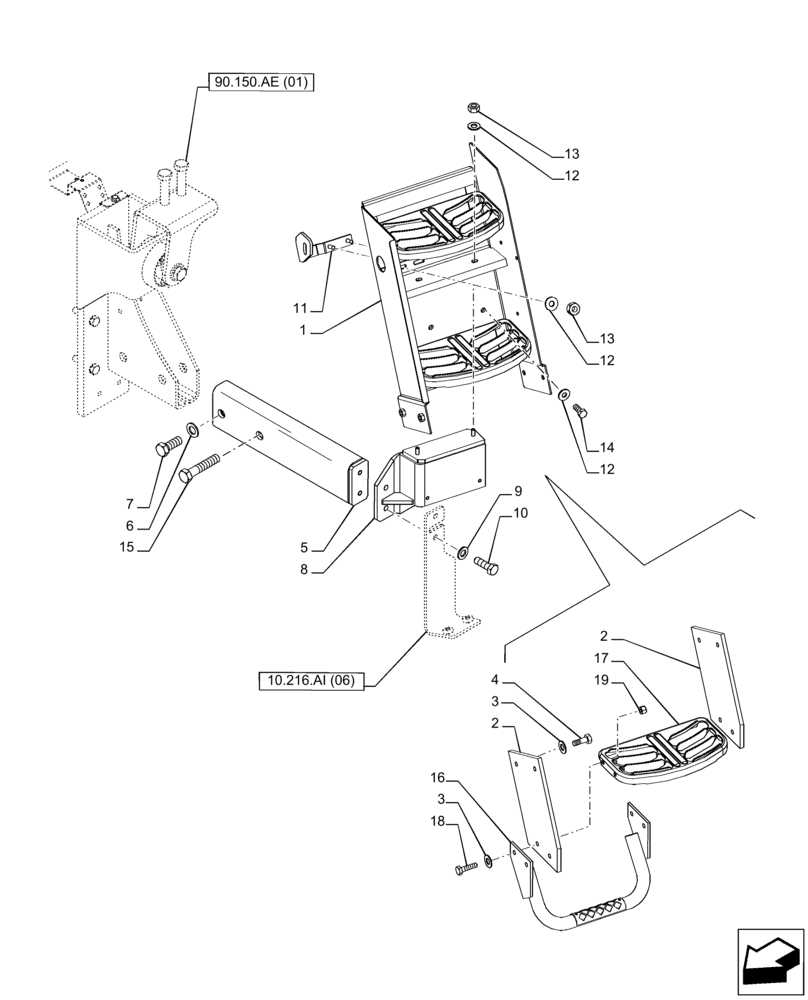

Схема запчастей Case IH PUMA 150 - (90.118.BX[03]) - VAR - 332585, 392117 - LADDER, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
12
11
15
13
6
8
16
10
2
5
3
3
2
13
10.216.ai (06)
17
12
12
14
18
90.150.ae (01)
1
9
19
7

Артикул

Название

Примечание

Количество

1

47367592

STEP

LH, Upper

1шт.

2

87565408

SUPPORT

Rubber Step

1шт.

3

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

8шт.

4

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

5

84238605

SUPPORT

LH

1шт.

6

14497101

WASHER,M20 x 37 x 3

2шт.

7

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

1шт.

8

84414020

BRACKET

LH

1шт.

9

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

10

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

11

84487990

BRACKET

Tank Support

1шт.

12

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

6шт.

13

9706690

NUT,M8 x 1.25, Cl 8

6шт.

14

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

15

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

1шт.

16

84125913

STEP

Lower

1шт.

17

87371925

STEP

1шт.

18

16040824

SCREW,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

M10 x 40

4шт.

19

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

4шт.

Выбрано товаров: 19
