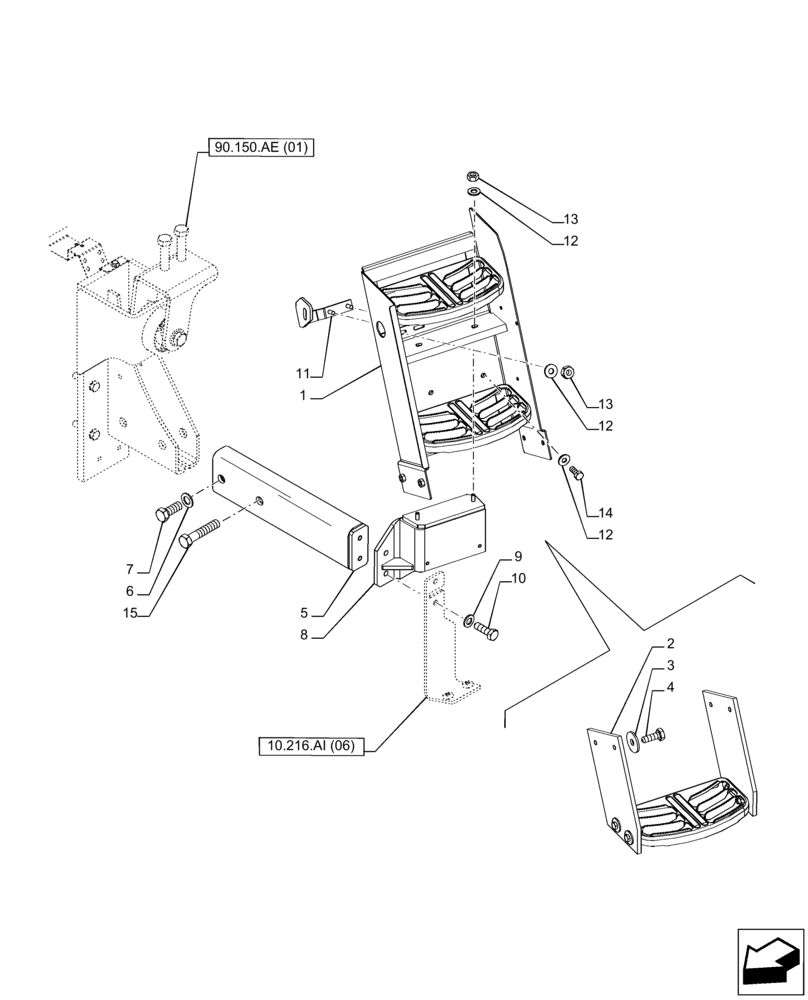

Запчасти Case IH PUMA 150 (90.118.BX[01]) - VAR - 332585, 392117 - LADDER, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47367592

STEP

LH, Upper

1шт.

2

87565419

FOOT BOARD

Lower Rubber Step

1шт.

3

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

4

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

5

84238605

SUPPORT

LH

1шт.

6

14497101

WASHER,M20 x 37 x 3

2шт.

7

9847023

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

1шт.

8

84414020

BRACKET

LH

1шт.

9

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

10

11112821

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

2шт.

11

84487990

BRACKET

Tank Support

1шт.

12

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

6шт.

13

9706690

NUT,M8 x 1.25, Cl 8

6шт.

14

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

15

395528

BOLT,Hex, M20 x 2.5 x 100mm, Cl 8.8

1шт.
