Запчасти Case IH PUMA 150 (90.116.AC[08]) - VAR - 758181, 758182, 758339, 758340 - WIDE REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

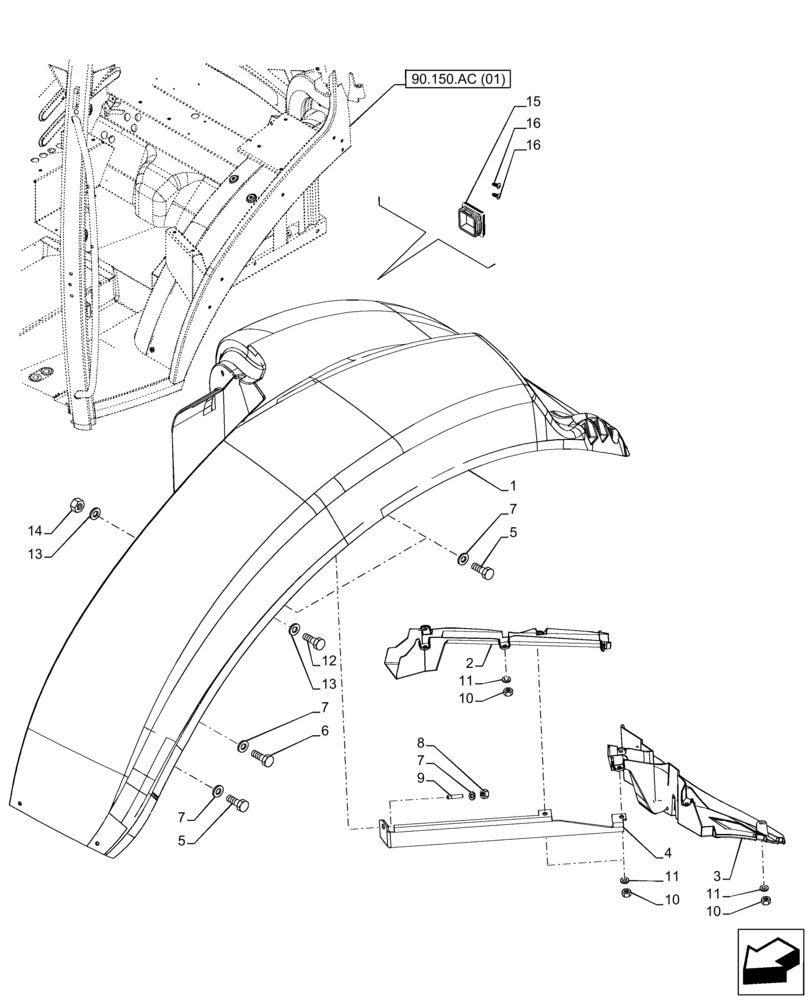

Схема запчастей Case IH PUMA 150 - (90.116.AC[08]) - VAR - 758181, 758182, 758339, 758340 - WIDE REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
10
11
11
16
10
7
1
11
8
5
9
2
10
5
90.150.ac (01)
13
16
14
15
6
7
3
7
7
12
4

Артикул

Название

Примечание

Количество

1

87554860

REAR FENDER

LH, Red, CASE

1шт.

1

87554861

REAR FENDER

RH, Red, CASE

1шт.

2

84537442

COVER

LH

1шт.

2

84537443

COVER

RH

1шт.

3

87383820

COVER

LH

1шт.

3

87383821

COVER

RH

1шт.

4

87389465

BRACKET

LH

1шт.

4

87389466

BRACKET

RH

1шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

6шт.

6

83992627

CAPTIVE WASHER SCREW,Hex, M8 x 1.25 x 25mm, Pilot

2шт.

7

83903813

SPACER,9.80-10.29mm ID x 28.4mm OD x 2.8mm Thk

12шт.

8

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

Only LH Side

2шт.

8

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

Only RH Side

2шт.

9

13517021

STUD,M8 x 12mm x 25mm, Cl 8.8

4шт.

10

12574211

NUT,M6 x 1, Cl 8

18шт.

11

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

18шт.

12

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

13

12644301

WASHER,M10 x 35 x 3

4шт.

14

11701711

NUT,Hex, M10, Cl 8, ZND

2шт.

15

82033880

PLUG,70mm ID

2шт.

16

81870039

FASTENER,M8 x 1.5 x 22mm

4шт.

Выбрано товаров: 21
