Запчасти Case IH PUMA 150 (90.102.AD[01]) - VAR - 391216, 758207, 758208, 758210 - HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

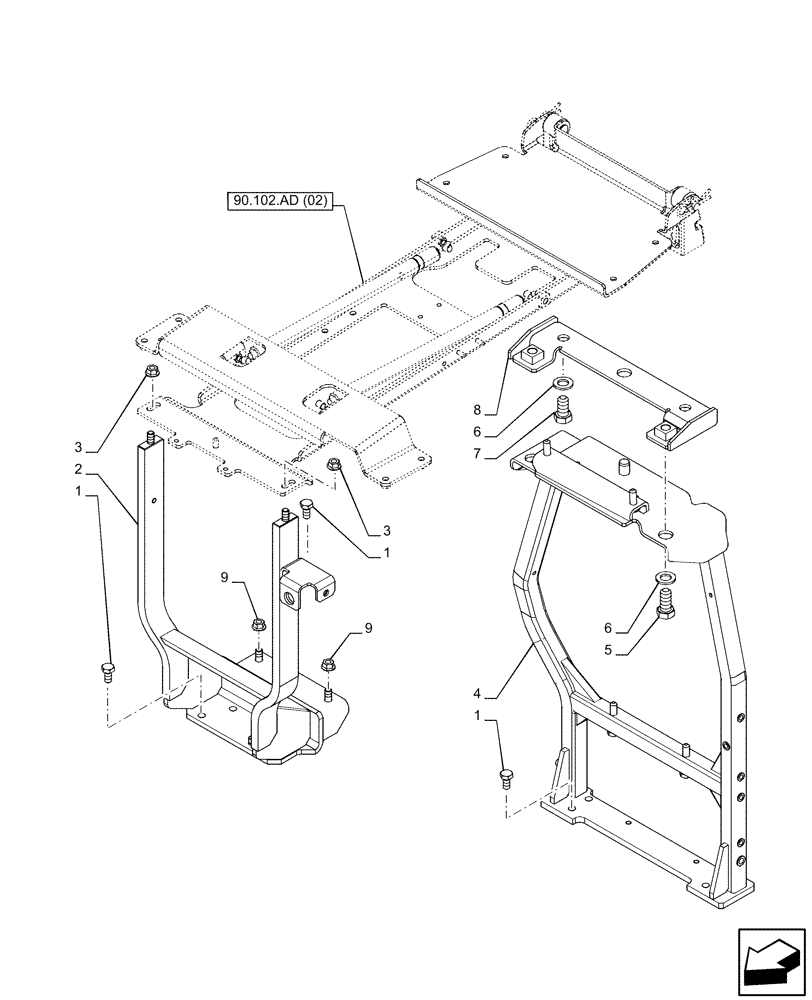

Схема запчастей Case IH PUMA 150 - (90.102.AD[01]) - VAR - 391216, 758207, 758208, 758210 - HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.102.ad (02)
3
6
7
2
3
4
9
1
8
1
9
5
1
6

Артикул

Название

Примечание

Количество

1

11106121

BOLT,Hex, M10 x 1.5 x 22mm, Cl 8.8, Full Thd

8шт.

2

47632455

SUPPORT

Hood Front

1шт.

3

14059421

FLANGE NUT,Hex, M10 x 1.25, Cl. 10

M10 x 1.25

2шт.

4

47673250

SUPPORT

Hood Rear

1шт.

5

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

2шт.

6

86511326

WASHER,17mm ID x 30mm OD x 3mm Thk

4шт.

7

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

2шт.

8

84606693

BRACKET

1шт.

9

47455668

NUT,Hex, M10

2шт.

Выбрано товаров: 9
