Запчасти Case IH PUMA 150 (90.100.AU[02]) - VAR - 391216, 758207, 758208, 758210 - HOOD, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

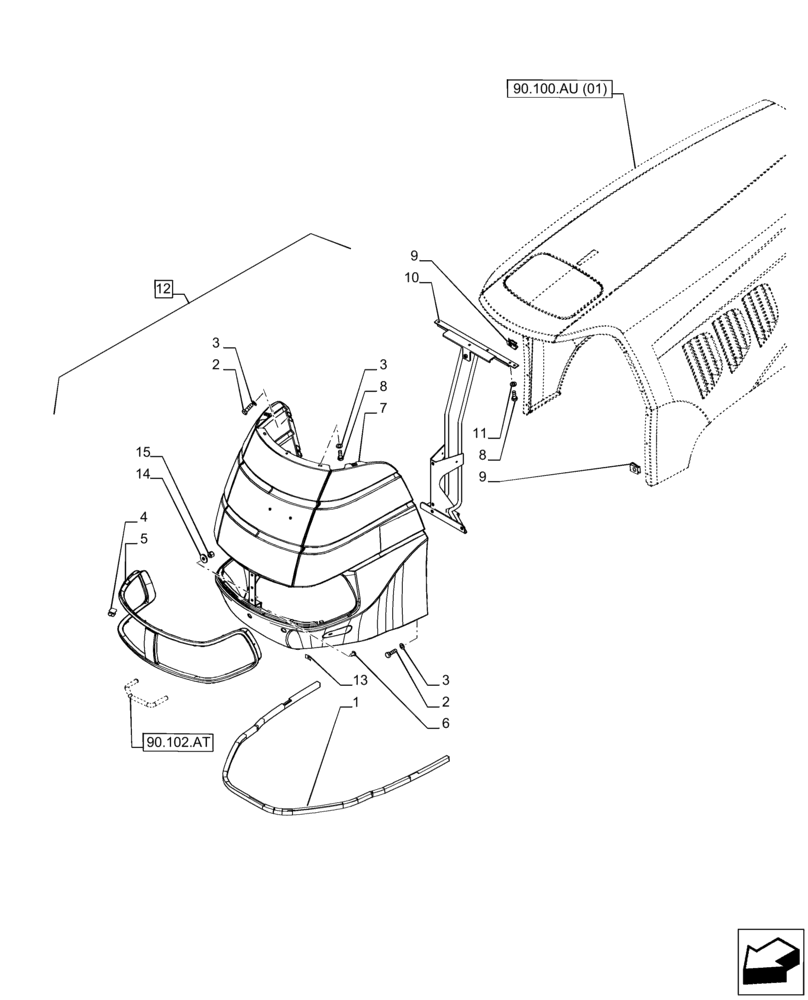

Схема запчастей Case IH PUMA 150 - (90.100.AU[02]) - VAR - 391216, 758207, 758208, 758210 - HOOD, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
9
11
2
4
15
10
2
90.100.au (01)
3
13
8
90.102.at
3
9
5
1
3
7
14
8
6

Артикул

Название

Примечание

Количество

1

84156636

RUBBER STRIP

Hood Front

1шт.

2

120100

BOLT,M6 x 20mm, Cl 8.8

12шт.

3

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

15шт.

4

87536288

CLIP

4шт.

5

87734283

GRILLE

1шт.

6

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

4шт.

7

NSS

NOT SOLD SEPARAT

Grille, Incl in 12

1шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

9

14189071

SPRING NUT,M6

M6

12шт.

10

84150680

SUPPORT

Hood Latch

1шт.

11

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

3шт.

12

84291115

GRILLE

ASSY, Incl 3 - 9, 13 - 15

1шт.

13

14227674

SPRING NUT,B Style, M4 x 14mm L x 0.4mm Thk

4шт.

14

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

3шт.

15

12574211

NUT,M6 x 1, Cl 8

3шт.

Выбрано товаров: 15
