Запчасти Case IH PUMA 240 CVT (41.216.AV[20]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, STEERING CYLINDER, HYDRAULIC LINE (41) - STEERING

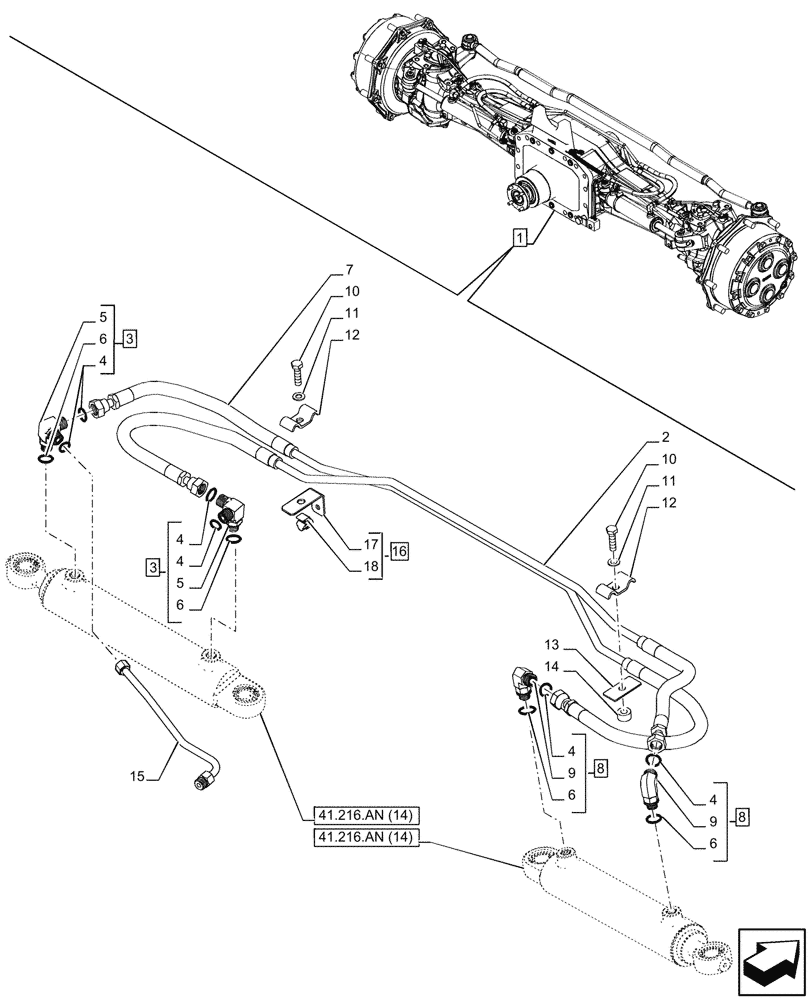

Схема запчастей Case IH PUMA 240 CVT - (41.216.AV[20]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, STEERING CYLINDER, HYDRAULIC LINE (41) - STEERING
5
9
4
5
2
1
8
10
10
4
13
9
6
4
11
3
7
12
6
14
6
16
41.216.an (14)
6
17
15
11
4
3
12
18
4
41.216.an (14)
8

Артикул

Название

Примечание

Количество

1

84381282

LIVE FRONT AXLE

ASSY, 4WD Suspended W/ Brake, Incl 2 - 18

1шт.

See Axle Components also in Figure 25.100.AD (13), 25.102.AD (17), 25.108.AA (12), 25.108.AB (09), 25.108.AC (10), 25.108.AG (23), 25.108.AG (24), 25.108.AN (10), 33.204.AB (04), 33.204.AD (04), 33.204.AG (06), 41.106.AG (13), 41.216.AN (14), 55.047.AA (13)

1шт.

2

5188440

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

Right Steering

1шт.

3

5188443

90 ELBOW

ASSY, Incl 4 (Q.ty 2), 5, 6 (Q.ty 1)

2шт.

4

5185510

O-RING,1.78mm Thk x 9.25mm ID, 85 Duro

2шт.

5

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

6

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

8

47127165

90 ELBOW

ASSY, Incl 4 (Q.ty 2), 6 (Q.ty 1), 9

2шт.

9

5188439

HYDRAULIC HOSE,10.00mm OD x 1450.00mm

Left Steering

1шт.

10

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

2шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

12

5188504

BRACKET

2шт.

13

5188503

BRACKET

1шт.

14

13605811

SPACER,8.50mm ID x 18.00mm OD x 10.00mm, STL, ZND

2шт.

15

84233089

HYD TUBE,10.00mm OD x 276.00mm, 75.00mm L

Steering Cylinder

1шт.

16

87730142

BRACKET

ASSY, Incl 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Bracket, Incl in 16

1шт.

18

14571780

CLIP

1шт.

Выбрано товаров: 19
