(41.216.AN[14]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, STEERING CYLINDER

Запчасти Case IH PUMA 240 CVT (41.216.AN[14]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, STEERING CYLINDER (41) - STEERING

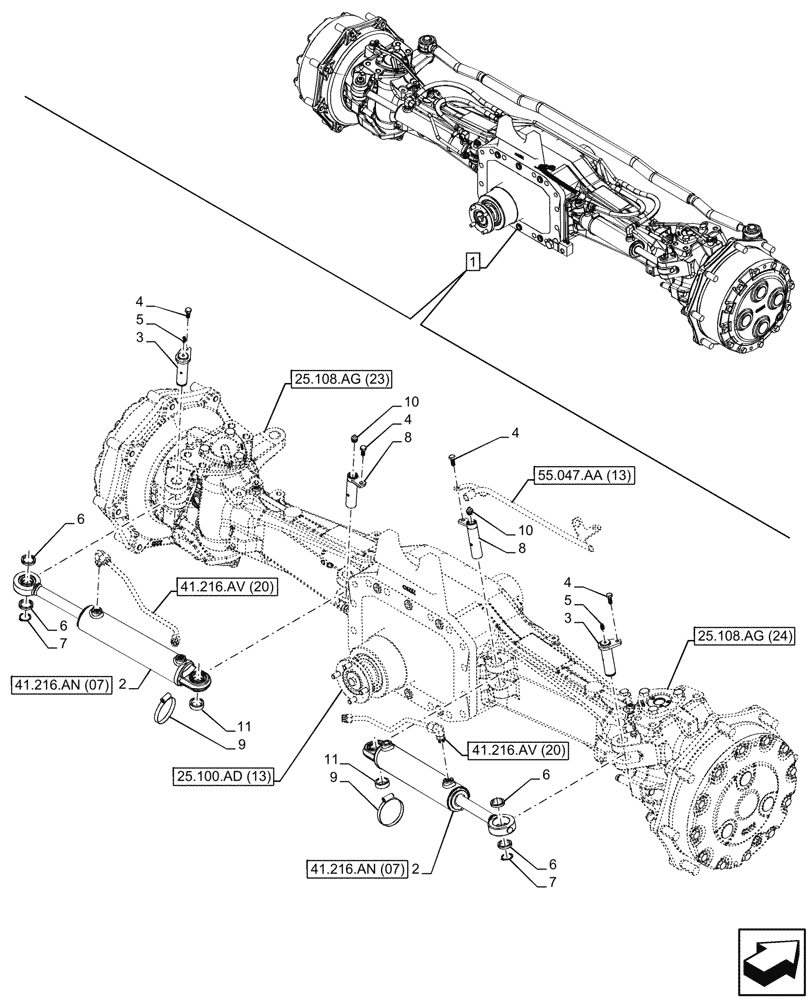

Схема запчастей Case IH PUMA 240 CVT - (41.216.AN[14]) - VAR - 758049 - SUSPENDED FRONT AXLE, W/ FRONT BRAKES, STEERING CYLINDER (41) - STEERING
11
6
41.216.an (07)
9
4
10
11
25.108.ag (23)
10
3
7
41.216.av (20)
41.216.an (07)
25.108.ag (24)
3
7
2
55.047.aa (13)
6
5
6
8
9
6
4
4
2
8
25.100.ad (13)
1
5
4
41.216.av (20)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84381282

LIVE FRONT AXLE

ASSY, 4WD Suspended W/ Brake, Incl 2 - 11

1шт.

See Axle Components also in Figure 25.100.AD (13), 25.102.AD (17), 25.108.AA (12), 25.108.AB (09), 25.108.AC (10), 25.108.AG (23), 25.108.AG (24), 25.108.AN (10), 33.204.AB (04), 33.204.AD (04), 33.204.AG (06), 41.106.AG (13), 41.216.AV (20), 55.047.AA (13)

1шт.

2

5198883

STEERING CYLINDER,Double Acting, 25mm Rod, 232.5mm Stroke

ASSY

2шт.

3

5171707

PIN,24.97mm OD x 91mm L

2шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

80714

LUBE NIPPLE,1/4"-28 NPT x .54" lg

2шт.

6

5111573

SPACER,25.5mm ID x 34mm OD x 5.9mm L

4шт.

7

11067376

SNAP RING,M25, Ext

2шт.

8

5198013

PIN,24.97mm OD x 100mm L

2шт.

9

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.

10

5191671

LUBE NIPPLE,45 Degree, M14 x 1.5

2шт.

11

5111576

SPACER,25.5mm ID x 34mm OD x 11mm L

2шт.
